20250910荣品RD-RK3588-MID开发板在Android13系统下解决点卡迪的屏闪屏的问题
2025/9/5 15:44

缘起：荣品RD-RK3588-MID开发板在Android13系统下解决点卡迪的屏。

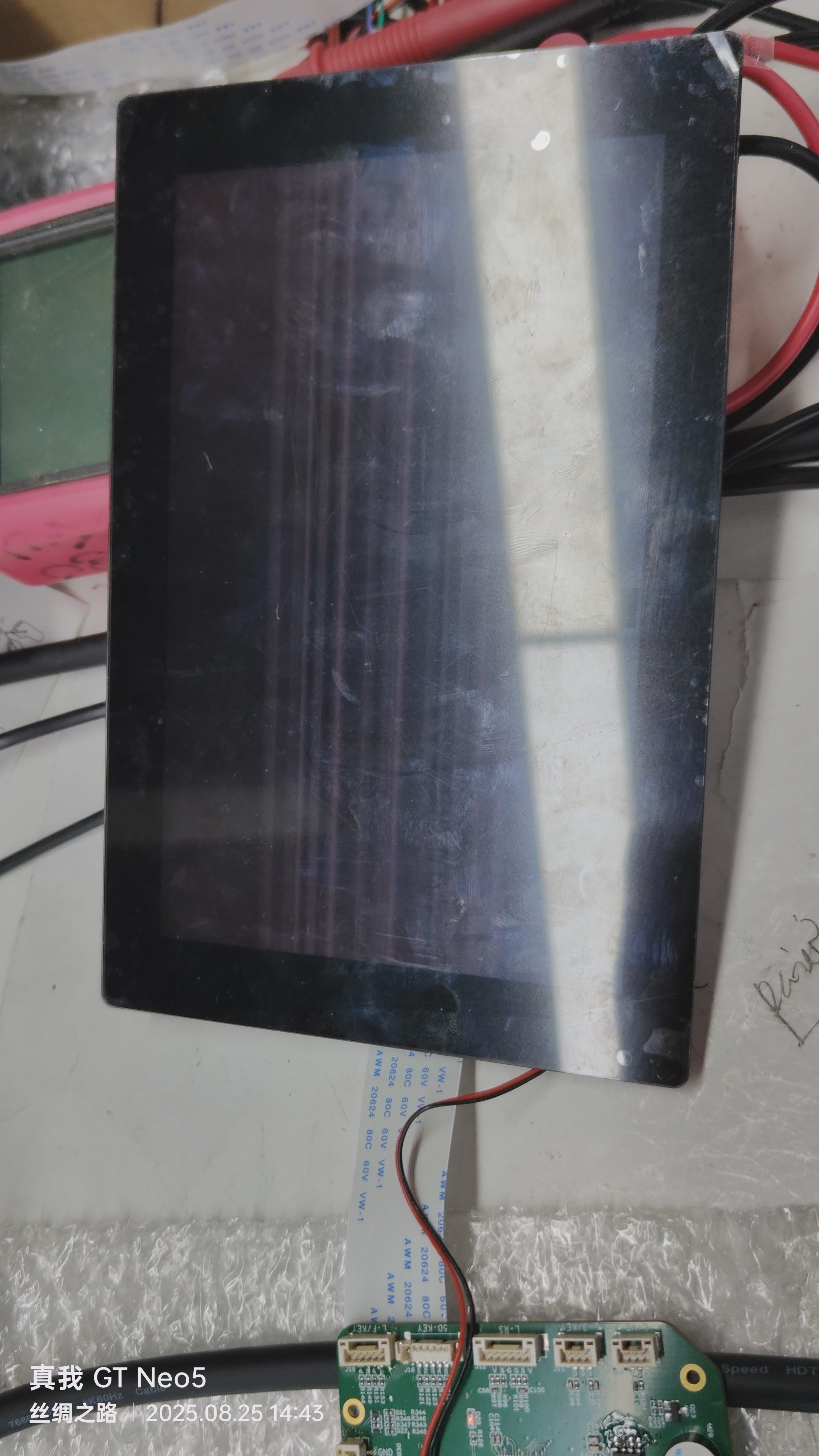

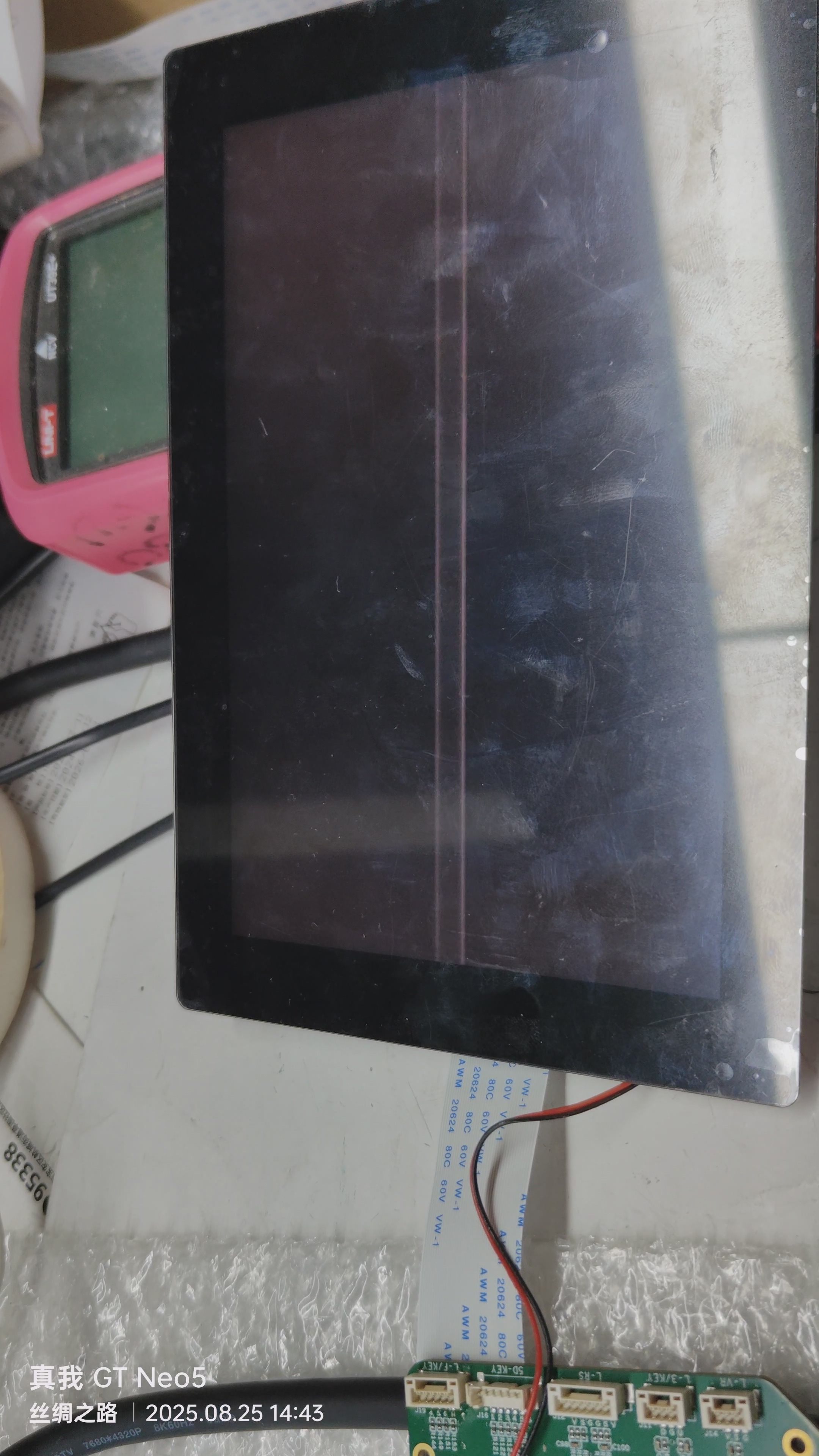

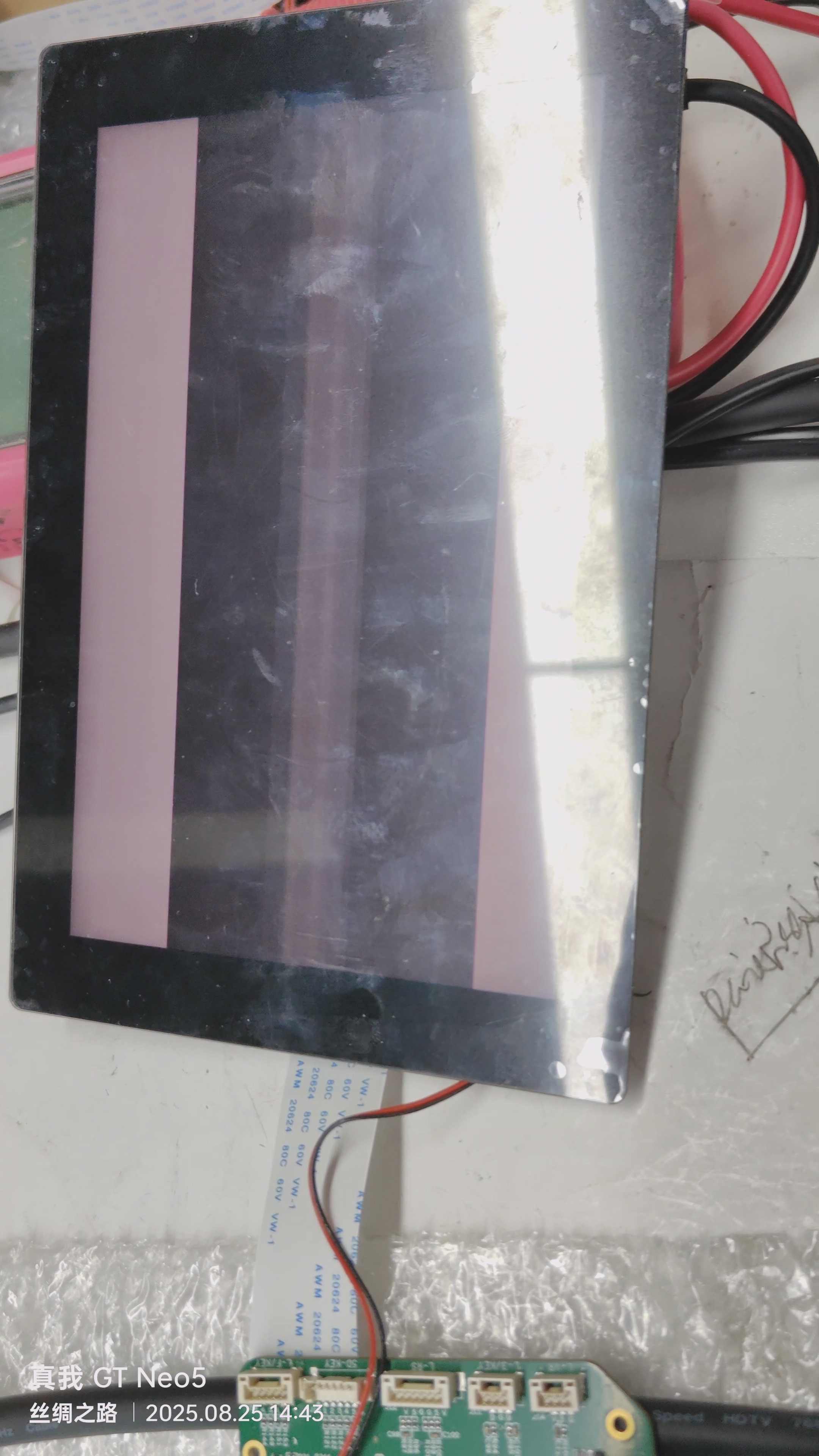

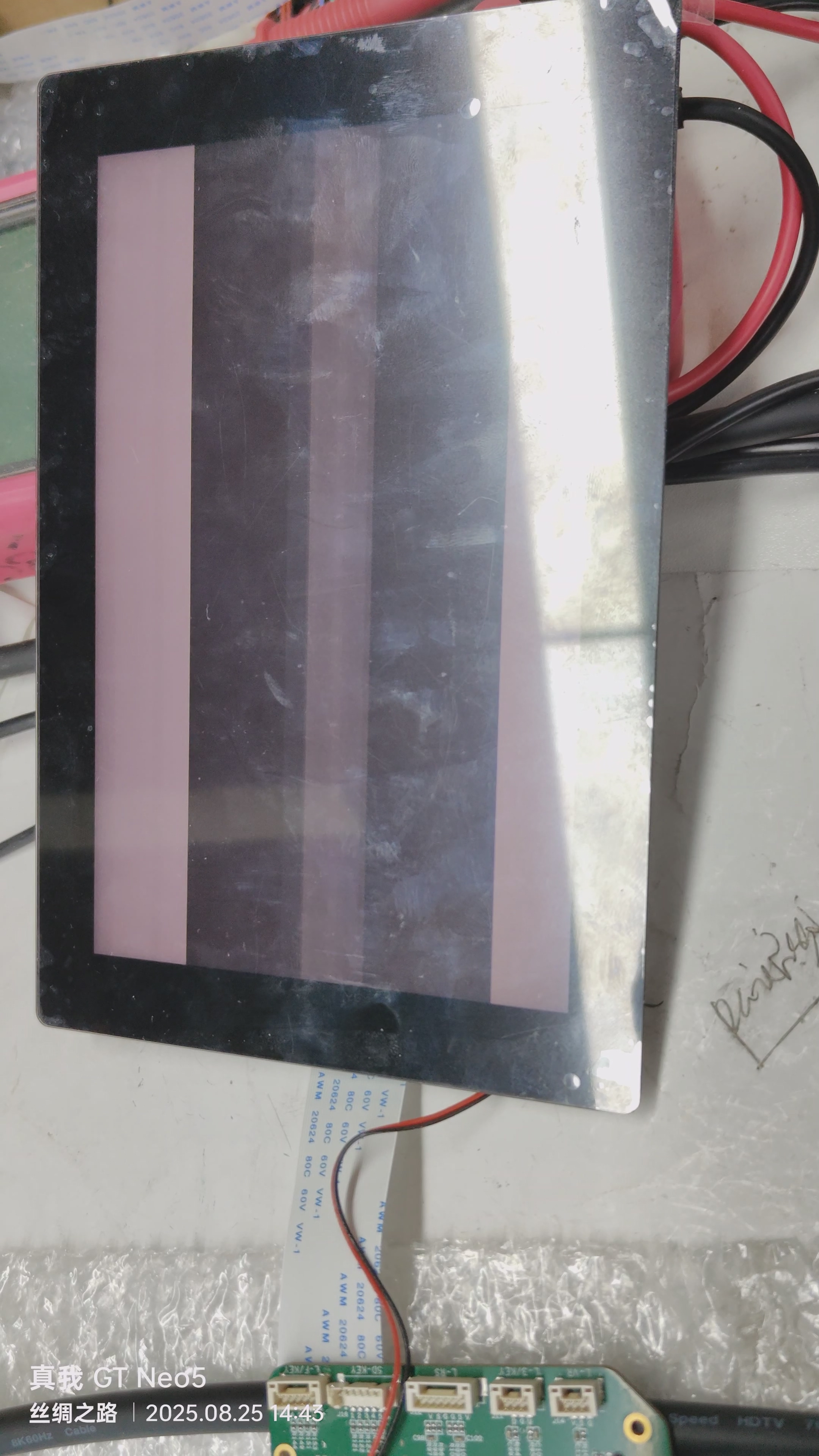

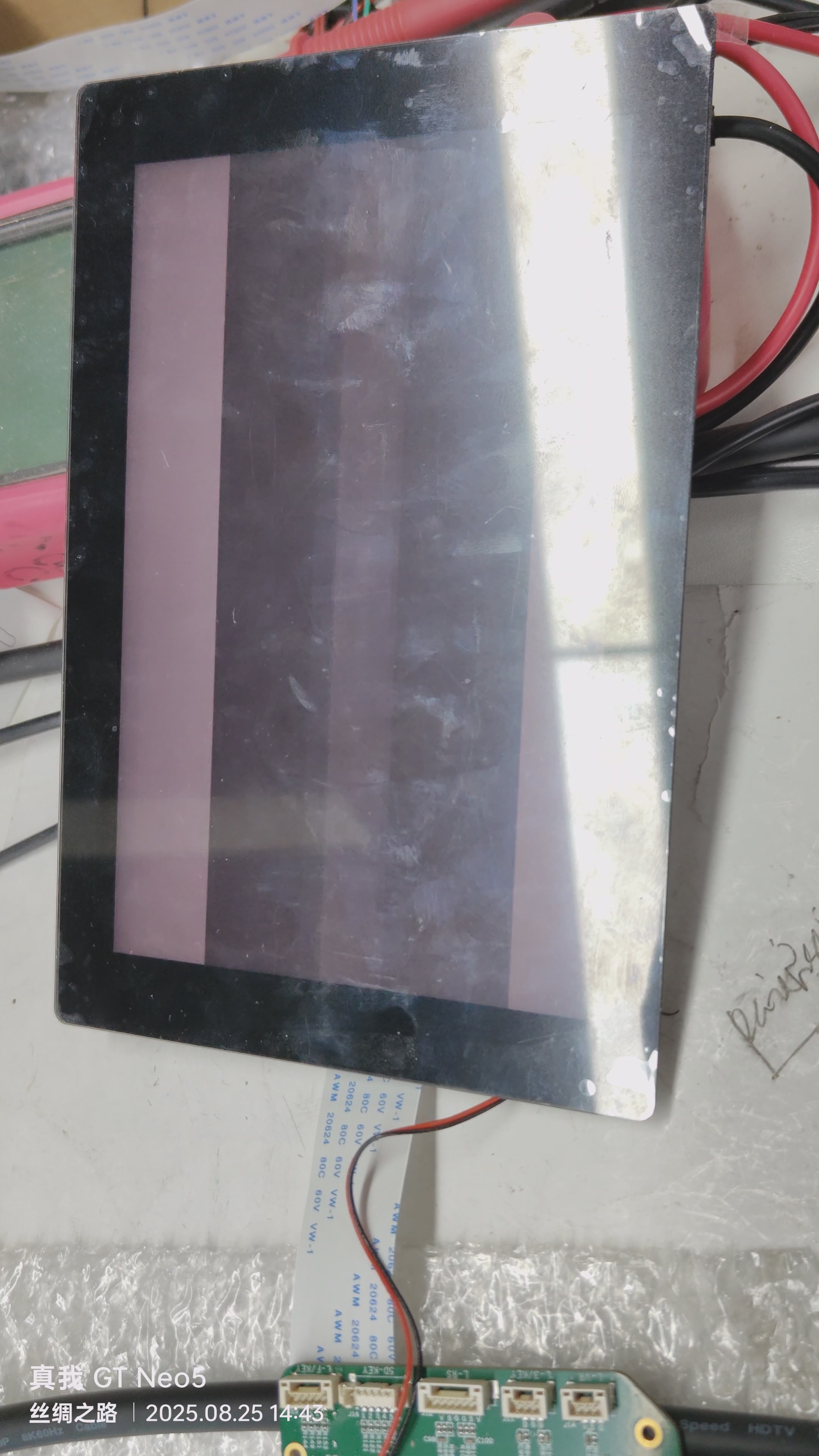

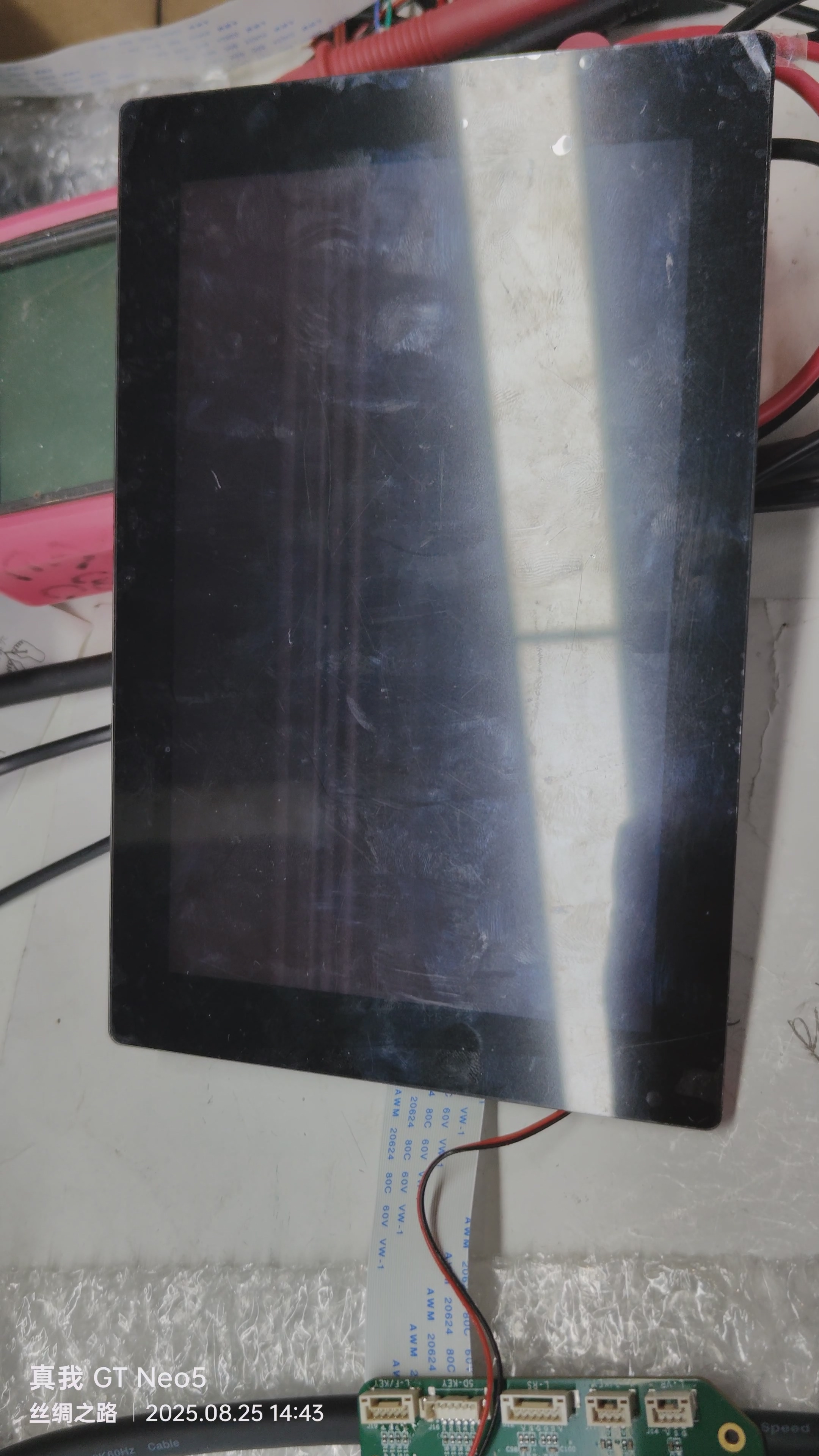

按 POWER按键关机之后，2s之内再次短按 POWER按键，开机之后屏会抖动。

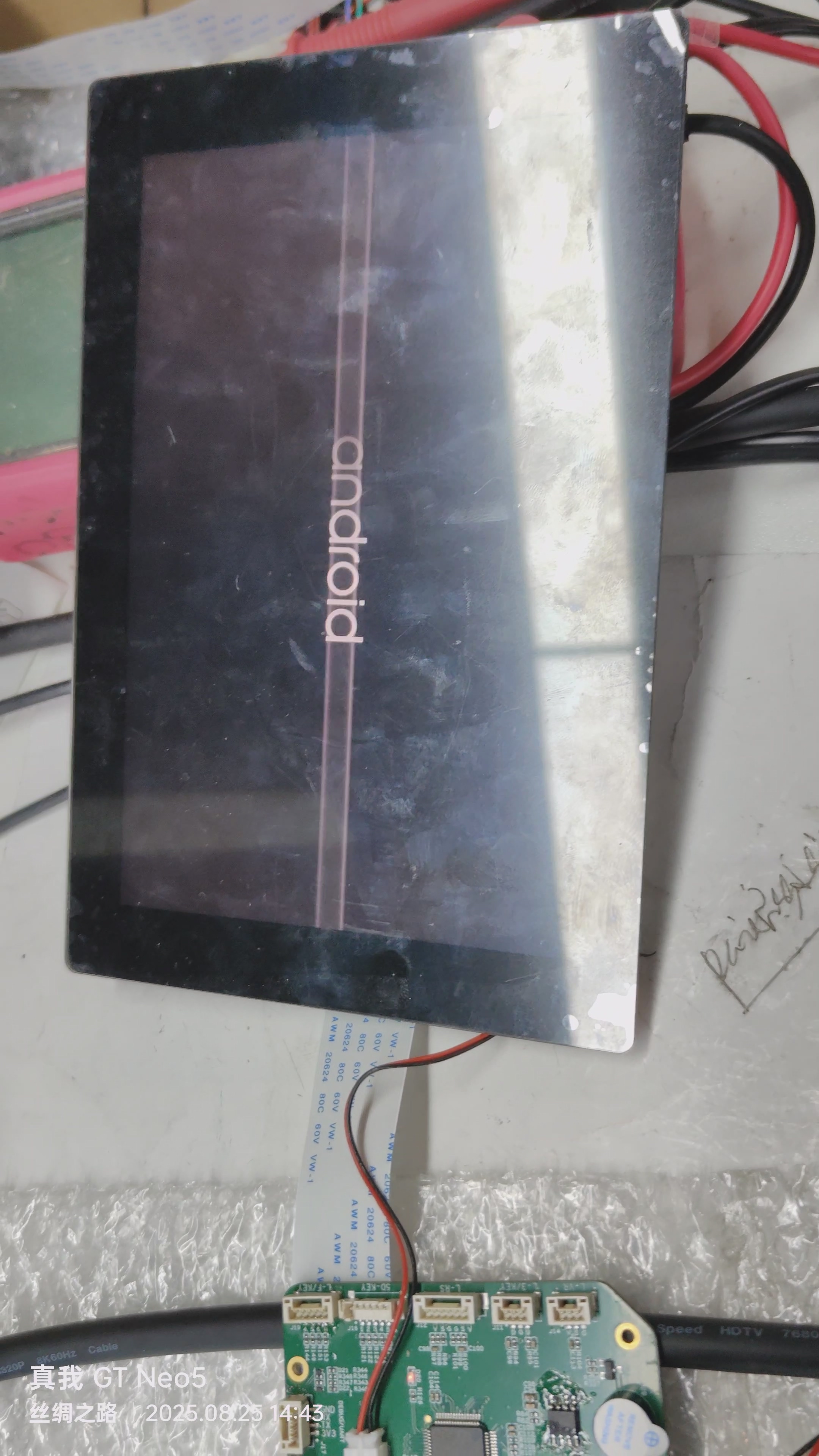

2s后短按 POWER按键，开机之后屏显示正常。

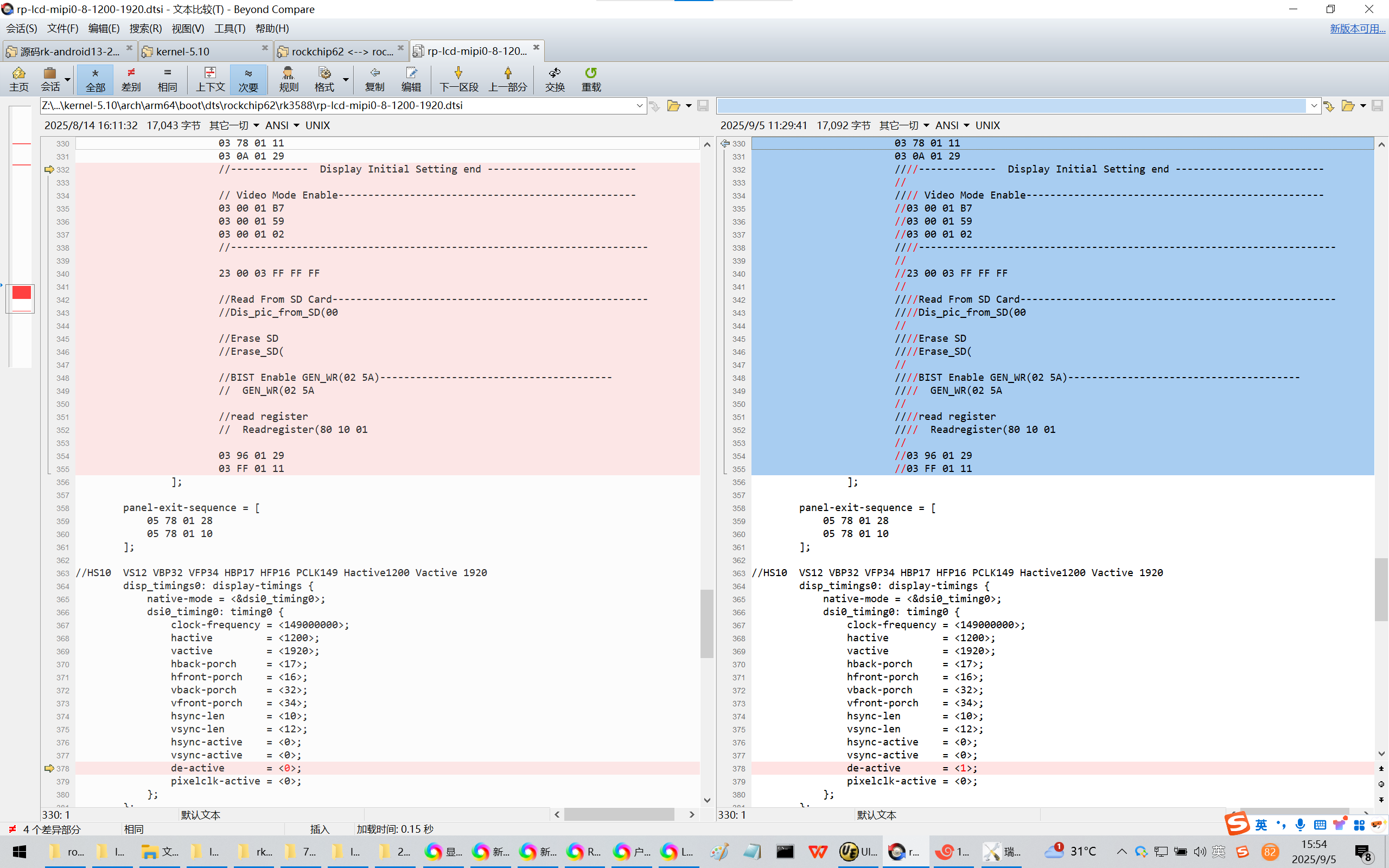

解决步骤：屏蔽掉11 29后面的初始化代码。
据说后面的代码是控制端使用的？

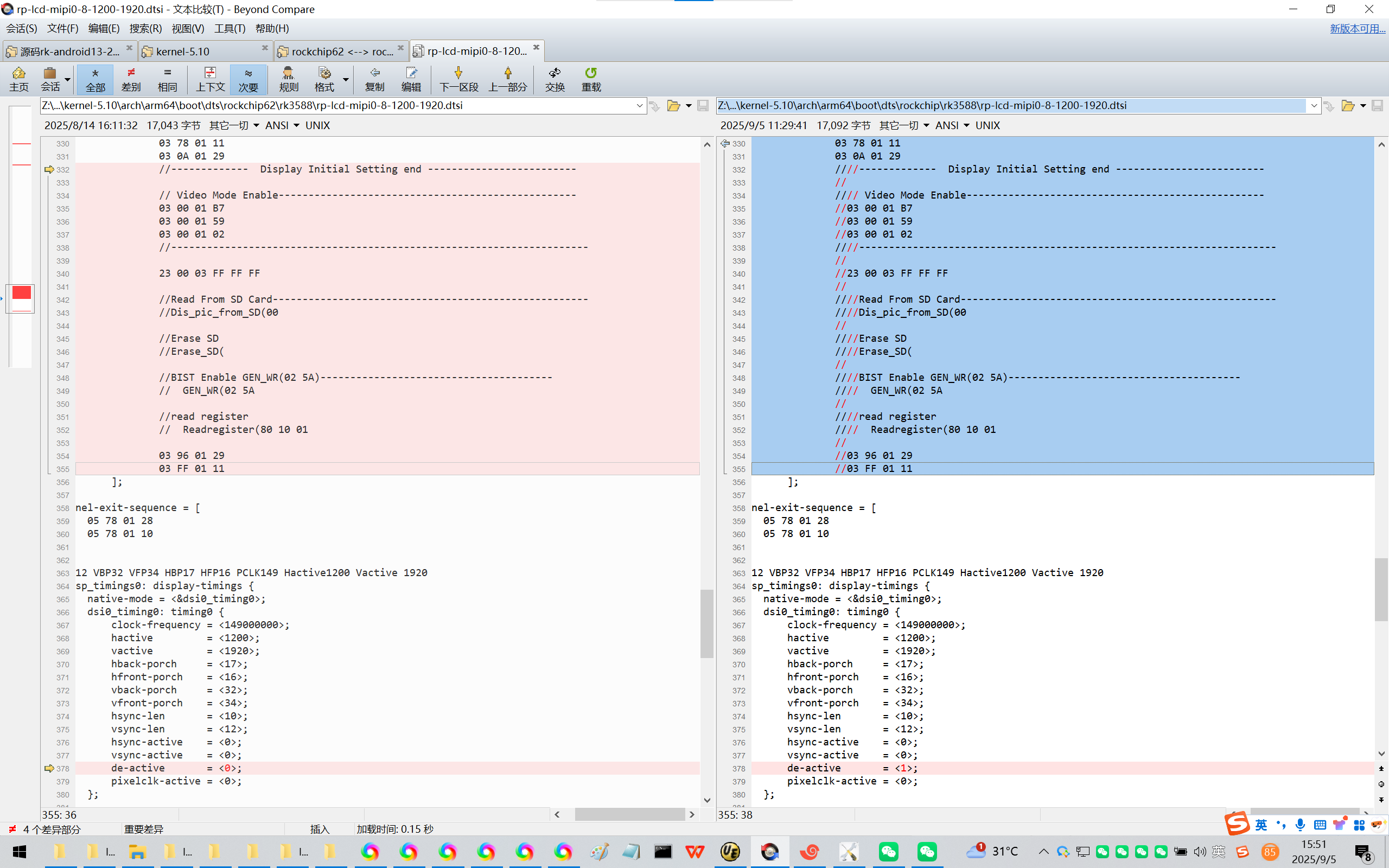

最好还需要修改一下：de-active的极性为1。

请问 DTS中的 de-active 这个参数是干嘛用的呀？/配置啥的？

@2025?一般【我见过的屏都是】 0x11 和 0x29命令之后就没有命令了。
请问一下命令是必须的吗？做什么用的？

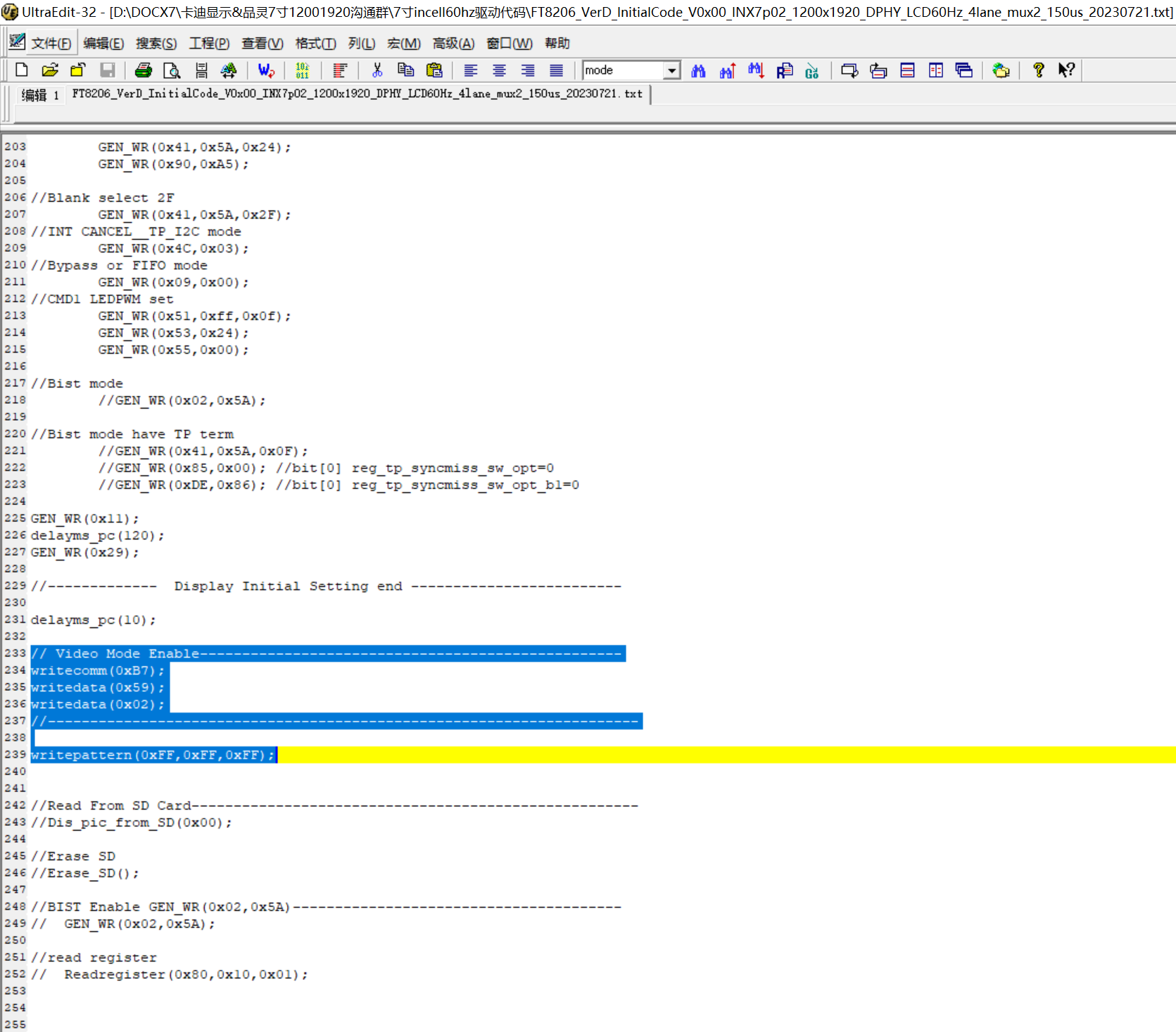

// Video Mode Enable--------------------------------------------------
writecomm(0xB7);
writedata(0x59);
writedata(0x02);
//----------------------------------------------------------------------

writepattern(0xFF,0xFF,0xFF);

不需要
请问这些指令是干嘛用的？
望文生义：看名字是视频模式使能的？感觉很重要的！[破涕为笑][疑问]

RD-RK3588-MID开发板。
使用卡迪的屏。

关机之后。

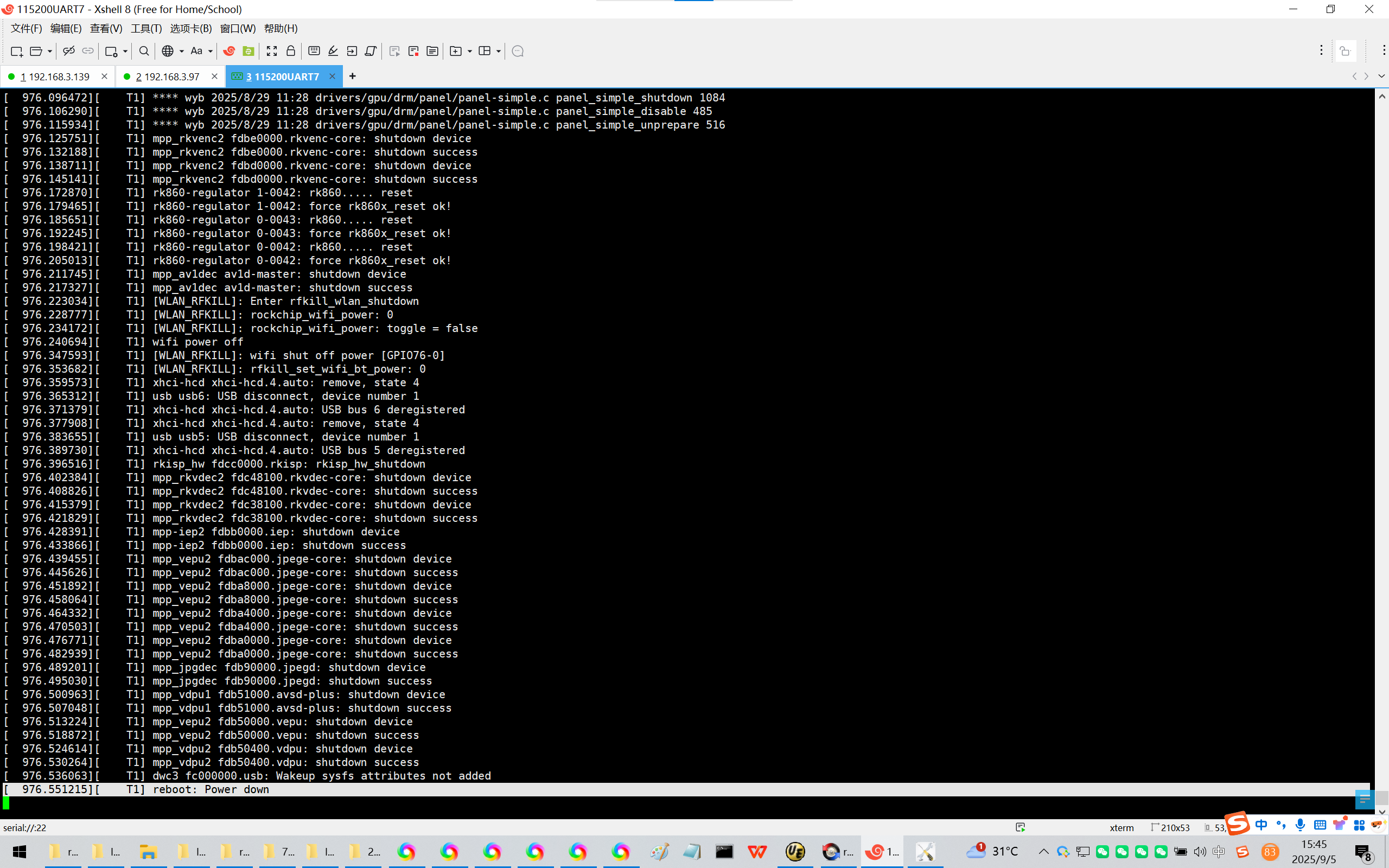

串口打印：[ 49.896765][ T1] reboot: Power down

如果 2秒之内按 POWER按键开机。LCD屏会抖动。
2秒后正常。上下电时序按照规格书配置。

可能是啥原因？你们有碰到过吗？

[ 976.096472][ T1] **** wyb 2025/8/29 11:28 drivers/gpu/drm/panel/panel-simple.c panel_simple_shutdown 1084
[ 976.106290][ T1] **** wyb 2025/8/29 11:28 drivers/gpu/drm/panel/panel-simple.c panel_simple_disable 485
[ 976.115934][ T1] **** wyb 2025/8/29 11:28 drivers/gpu/drm/panel/panel-simple.c panel_simple_unprepare 516
[ 976.125751][ T1] mpp_rkvenc2 fdbe0000.rkvenc-core: shutdown device
[ 976.132188][ T1] mpp_rkvenc2 fdbe0000.rkvenc-core: shutdown success
[ 976.138711][ T1] mpp_rkvenc2 fdbd0000.rkvenc-core: shutdown device
[ 976.145141][ T1] mpp_rkvenc2 fdbd0000.rkvenc-core: shutdown success
[ 976.172870][ T1] rk860-regulator 1-0042: rk860..... reset
[ 976.179465][ T1] rk860-regulator 1-0042: force rk860x_reset ok!
[ 976.185651][ T1] rk860-regulator 0-0043: rk860..... reset
[ 976.192245][ T1] rk860-regulator 0-0043: force rk860x_reset ok!
[ 976.198421][ T1] rk860-regulator 0-0042: rk860..... reset
[ 976.205013][ T1] rk860-regulator 0-0042: force rk860x_reset ok!
[ 976.211745][ T1] mpp_av1dec av1d-master: shutdown device
[ 976.217327][ T1] mpp_av1dec av1d-master: shutdown success
[ 976.223034][ T1] [WLAN_RFKILL]: Enter rfkill_wlan_shutdown
[ 976.228777][ T1] [WLAN_RFKILL]: rockchip_wifi_power: 0
[ 976.234172][ T1] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[ 976.240694][ T1] wifi power off
[ 976.347593][ T1] [WLAN_RFKILL]: wifi shut off power [GPIO76-0]
[ 976.353682][ T1] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 0
[ 976.359573][ T1] xhci-hcd xhci-hcd.4.auto: remove, state 4
[ 976.365312][ T1] usb usb6: USB disconnect, device number 1
[ 976.371379][ T1] xhci-hcd xhci-hcd.4.auto: USB bus 6 deregistered
[ 976.377908][ T1] xhci-hcd xhci-hcd.4.auto: remove, state 4
[ 976.383655][ T1] usb usb5: USB disconnect, device number 1
[ 976.389730][ T1] xhci-hcd xhci-hcd.4.auto: USB bus 5 deregistered
[ 976.396516][ T1] rkisp_hw fdcc0000.rkisp: rkisp_hw_shutdown
[ 976.402384][ T1] mpp_rkvdec2 fdc48100.rkvdec-core: shutdown device
[ 976.408826][ T1] mpp_rkvdec2 fdc48100.rkvdec-core: shutdown success
[ 976.415379][ T1] mpp_rkvdec2 fdc38100.rkvdec-core: shutdown device
[ 976.421829][ T1] mpp_rkvdec2 fdc38100.rkvdec-core: shutdown success
[ 976.428391][ T1] mpp-iep2 fdbb0000.iep: shutdown device
[ 976.433866][ T1] mpp-iep2 fdbb0000.iep: shutdown success
[ 976.439455][ T1] mpp_vepu2 fdbac000.jpege-core: shutdown device
[ 976.445626][ T1] mpp_vepu2 fdbac000.jpege-core: shutdown success
[ 976.451892][ T1] mpp_vepu2 fdba8000.jpege-core: shutdown device
[ 976.458064][ T1] mpp_vepu2 fdba8000.jpege-core: shutdown success
[ 976.464332][ T1] mpp_vepu2 fdba4000.jpege-core: shutdown device
[ 976.470503][ T1] mpp_vepu2 fdba4000.jpege-core: shutdown success
[ 976.476771][ T1] mpp_vepu2 fdba0000.jpege-core: shutdown device
[ 976.482939][ T1] mpp_vepu2 fdba0000.jpege-core: shutdown success
[ 976.489201][ T1] mpp_jpgdec fdb90000.jpegd: shutdown device
[ 976.495030][ T1] mpp_jpgdec fdb90000.jpegd: shutdown success
[ 976.500963][ T1] mpp_vdpu1 fdb51000.avsd-plus: shutdown device
[ 976.507048][ T1] mpp_vdpu1 fdb51000.avsd-plus: shutdown success
[ 976.513224][ T1] mpp_vepu2 fdb50000.vepu: shutdown device
[ 976.518872][ T1] mpp_vepu2 fdb50000.vepu: shutdown success
[ 976.524614][ T1] mpp_vdpu2 fdb50400.vdpu: shutdown device
[ 976.530264][ T1] mpp_vdpu2 fdb50400.vdpu: shutdown success
[ 976.536063][ T1] dwc3 fc000000.usb: Wakeup sysfs attributes not added
[ 976.551215][ T1] reboot: Power down

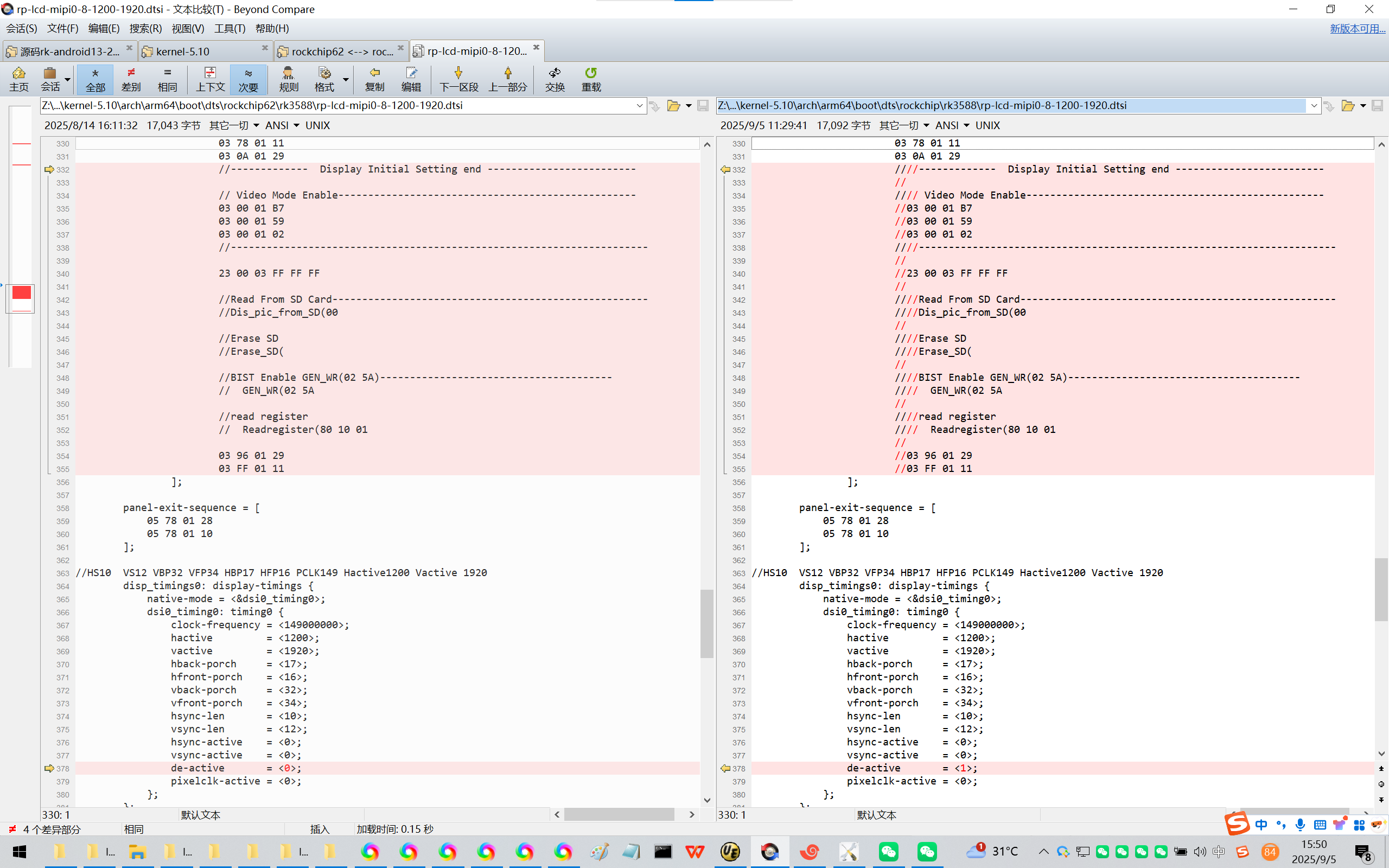

Z:\rk-android13-20250818RD-RK3588-MID\kernel-5.10\arch\arm64\boot\dts\rockchip\rk3588\rp-lcd-mipi0-8-1200-1920.dtsi
