在电商数据分析、比价系统开发等场景中，商品详情页数据是核心基础。本文将围绕淘宝商品详情页数据接口的合规设计、高效采集与智能解析展开，提供一套可落地的技术方案，重点解决动态渲染、参数加密与数据结构化等关键问题。

一、接口设计原则与合规边界

1. 核心设计原则

• 合规优先：严格遵循 robots 协议，请求频率控制在平台允许范围内（建议单 IP 日均请求不超过 1000 次）
• 低侵入性：采用模拟正常用户行为的采集策略，避免对目标服务器造成额外负载
• 可扩展性：接口设计预留扩展字段，适应平台页面结构变更
• 容错机制：针对反爬策略变更，设计动态参数自适应调整模块

2. 数据采集合规边界

• 仅采集公开可访问的商品信息（价格、规格、参数等）
• 不涉及用户隐私数据与交易记录
• 数据用途需符合《电子商务法》及平台服务协议
• 明确标识数据来源，不用于商业竞争或不正当用途

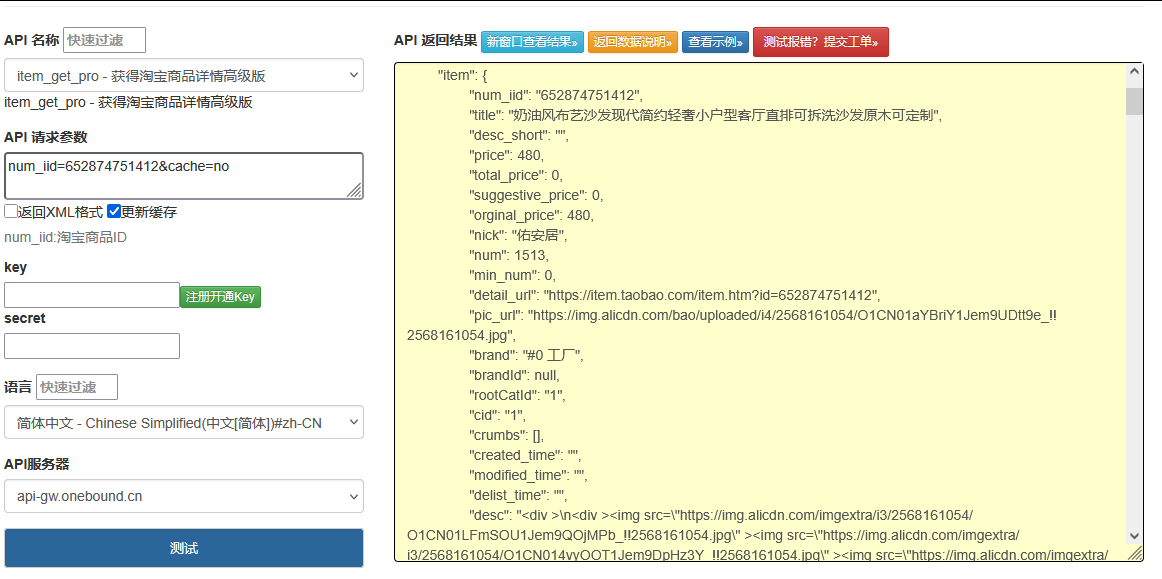

点击获取key和secret

二、接口核心架构设计

plaintext

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│  请求调度层     │    │  数据解析层     │    │  存储与缓存层   │
│  - 任务队列     │───►│  - 动态渲染处理 │───►│  - 结构化存储   │
│  - 代理池管理   │    │  - 数据清洗     │    │  - 热点缓存     │
│  - 频率控制     │    │  - 异常处理     │    │  - 增量更新     │
└─────────────────┘    └─────────────────┘    └─────────────────┘

1. 请求调度层实现

核心解决动态参数生成、IP 代理轮换与请求频率控制问题：

python

运行

import time
import random
import requests
from queue import Queue
from threading import Thread
from fake_useragent import UserAgentclass RequestScheduler:def __init__(self, proxy_pool=None, max_qps=2):self.proxy_pool = proxy_pool or []self.max_qps = max_qps  # 每秒最大请求数self.request_queue = Queue()self.result_queue = Queue()self.ua = UserAgent()self.running = Falsedef generate_headers(self):"""生成随机请求头，模拟不同设备"""return {"User-Agent": self.ua.random,"Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8","Accept-Language": "zh-CN,zh;q=0.9","Connection": "keep-alive","Upgrade-Insecure-Requests": "1","Cache-Control": f"max-age={random.randint(0, 300)}"}def get_proxy(self):"""从代理池获取可用代理"""if not self.proxy_pool:return Nonereturn random.choice(self.proxy_pool)def request_worker(self):"""请求处理工作线程"""while self.running or not self.request_queue.empty():item_id, callback = self.request_queue.get()try:# 频率控制time.sleep(1 / self.max_qps)# 构建请求参数url = f"https://item.taobao.com/item.htm?id={item_id}"headers = self.generate_headers()proxy = self.get_proxy()# 发送请求response = requests.get(url, headers=headers,proxies={"http": proxy, "https": proxy} if proxy else None,timeout=10,allow_redirects=True)# 检查响应状态if response.status_code == 200:self.result_queue.put((item_id, response.text, None))if callback:callback(item_id, response.text)else:self.result_queue.put((item_id, None, f"Status code: {response.status_code}"))except Exception as e:self.result_queue.put((item_id, None, str(e)))finally:self.request_queue.task_done()def start(self, worker_count=5):"""启动请求处理线程"""self.running = Truefor _ in range(worker_count):Thread(target=self.request_worker, daemon=True).start()def add_task(self, item_id, callback=None):"""添加请求任务"""self.request_queue.put((item_id, callback))def wait_complete(self):"""等待所有任务完成"""self.request_queue.join()self.running = False

2. 动态渲染处理模块

针对淘宝详情页的 JS 动态渲染特性，采用无头浏览器解决数据获取问题：

python

运行

from selenium import webdriver
from selenium.webdriver.chrome.options import Options
from selenium.webdriver.support.ui import WebDriverWait
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.common.by import By
from concurrent.futures import ThreadPoolExecutorclass DynamicRenderer:def __init__(self, headless=True):self.chrome_options = Options()if headless:self.chrome_options.add_argument("--headless=new")self.chrome_options.add_argument("--disable-gpu")self.chrome_options.add_argument("--no-sandbox")self.chrome_options.add_argument("--disable-dev-shm-usage")self.chrome_options.add_experimental_option("excludeSwitches", ["enable-automation"])self.pool = ThreadPoolExecutor(max_workers=3)def render_page(self, item_id, timeout=15):"""渲染商品详情页并返回完整HTML"""driver = Nonetry:driver = webdriver.Chrome(options=self.chrome_options)driver.get(f"https://item.taobao.com/item.htm?id={item_id}")# 等待关键元素加载完成WebDriverWait(driver, timeout).until(EC.presence_of_element_located((By.CSS_SELECTOR, ".tb-main-title")))# 模拟滚动加载更多内容for _ in range(3):driver.execute_script("window.scrollBy(0, 800);")time.sleep(random.uniform(0.5, 1.0))return driver.page_sourceexcept Exception as e:print(f"渲染失败: {str(e)}")return Nonefinally:if driver:driver.quit()def async_render(self, item_id):"""异步渲染页面"""return self.pool.submit(self.render_page, item_id)

3. 数据解析与结构化

使用 XPath 与正则表达式结合的方式提取关键信息：

python

运行

from lxml import etree
import re
import jsonclass ProductParser:def __init__(self):# 价格提取正则self.price_pattern = re.compile(r'["\']price["\']\s*:\s*["\']([\d.]+)["\']')# 库存提取正则self.stock_pattern = re.compile(r'["\']stock["\']\s*:\s*(\d+)')def parse(self, html):"""解析商品详情页HTML，提取结构化数据"""if not html:return Noneresult = {}tree = etree.HTML(html)# 提取基本信息result['title'] = self._extract_text(tree, '//h3[@class="tb-main-title"]/text()')result['seller'] = self._extract_text(tree, '//div[@class="tb-seller-info"]//a/text()')# 提取价格信息（优先从JS变量提取）price_match = self.price_pattern.search(html)if price_match:result['price'] = price_match.group(1)else:result['price'] = self._extract_text(tree, '//em[@class="tb-rmb-num"]/text()')# 提取库存信息stock_match = self.stock_pattern.search(html)if stock_match:result['stock'] = int(stock_match.group(1))# 提取商品图片result['images'] = tree.xpath('//ul[@id="J_UlThumb"]//img/@src')result['images'] = [img.replace('//', 'https://').replace('_50x50.jpg', '') for img in result['images'] if img]# 提取规格参数result['specs'] = self._parse_specs(tree)# 提取详情描述图片result['detail_images'] = tree.xpath('//div[@id="description"]//img/@src')result['detail_images'] = [img.replace('//', 'https://') for img in result['detail_images'] if img]return resultdef _extract_text(self, tree, xpath):"""安全提取文本内容"""elements = tree.xpath(xpath)if elements:return ' '.join([str(elem).strip() for elem in elements if elem.strip()])return Nonedef _parse_specs(self, tree):"""解析商品规格参数"""specs = {}spec_groups = tree.xpath('//div[@class="attributes-list"]//li')for group in spec_groups:name = self._extract_text(group, './/span[@class="tb-metatit"]/text()')value = self._extract_text(group, './/div[@class="tb-meta"]/text()')if name and value:specs[name.strip(':：')] = valuereturn specs

三、缓存与存储策略

为减轻目标服务器压力并提高响应速度，设计多级缓存机制：

python

运行

import redis
import pymysql
from datetime import timedelta
import hashlibclass DataStorage:def __init__(self, redis_config, mysql_config):# 初始化Redis缓存（短期缓存热点数据）self.redis = redis.Redis(host=redis_config['host'],port=redis_config['port'],password=redis_config.get('password'),db=redis_config.get('db', 0))# 初始化MySQL连接（长期存储）self.mysql_conn = pymysql.connect(host=mysql_config['host'],user=mysql_config['user'],password=mysql_config['password'],database=mysql_config['db'],charset='utf8mb4')# 缓存过期时间（2小时）self.cache_ttl = timedelta(hours=2).secondsdef get_cache_key(self, item_id):"""生成缓存键"""return f"taobao:product:{item_id}"def get_from_cache(self, item_id):"""从缓存获取数据"""data = self.redis.get(self.get_cache_key(item_id))return json.loads(data) if data else Nonedef save_to_cache(self, item_id, data):"""保存数据到缓存"""self.redis.setex(self.get_cache_key(item_id),self.cache_ttl,json.dumps(data, ensure_ascii=False))def save_to_db(self, item_id, data):"""保存数据到数据库"""if not data:return Falsetry:with self.mysql_conn.cursor() as cursor:# 插入或更新商品数据sql = """INSERT INTO taobao_products (item_id, title, price, stock, seller, specs, images, detail_images, update_time)VALUES (%s, %s, %s, %s, %s, %s, %s, %s, NOW())ON DUPLICATE KEY UPDATEtitle = VALUES(title), price = VALUES(price), stock = VALUES(stock),seller = VALUES(seller), specs = VALUES(specs), images = VALUES(images),detail_images = VALUES(detail_images), update_time = NOW()"""# 处理JSON字段specs_json = json.dumps(data.get('specs', {}), ensure_ascii=False)images_json = json.dumps(data.get('images', []), ensure_ascii=False)detail_images_json = json.dumps(data.get('detail_images', []), ensure_ascii=False)cursor.execute(sql, (item_id,data.get('title'),data.get('price'),data.get('stock'),data.get('seller'),specs_json,images_json,detail_images_json))self.mysql_conn.commit()return Trueexcept Exception as e:self.mysql_conn.rollback()print(f"数据库存储失败: {str(e)}")return False

四、反爬策略应对与系统优化

1. 动态参数自适应调整

针对淘宝的反爬机制，实现参数动态调整：

python

运行

class AntiCrawlHandler:def __init__(self):self.failure_count = {}  # 记录每个IP的失败次数self.success_threshold = 5  # 连续成功次数阈值self.failure_threshold = 3  # 连续失败次数阈值def adjust_strategy(self, item_id, success, proxy=None):"""根据请求结果调整策略"""if success:# 成功请求处理if proxy:self.failure_count[proxy] = max(0, self.failure_count.get(proxy, 0) - 1)return {"delay": max(0.5, 2.0 - (self.success_count.get(item_id, 0) / self.success_threshold))}else:# 失败请求处理if proxy:self.failure_count[proxy] = self.failure_count.get(proxy, 0) + 1# 超过失败阈值，标记代理不可用if self.failure_count[proxy] >= self.failure_threshold:return {"discard_proxy": proxy, "delay": 5.0}return {"delay": 5.0 + self.failure_count.get(proxy, 0) * 2}

2. 系统监控与告警

实现关键指标监控，及时发现异常：

python

运行

import time
import loggingclass SystemMonitor:def __init__(self):self.metrics = {"success_count": 0,"failure_count": 0,"avg_response_time": 0.0,"proxy_failure_rate": 0.0}self.last_check_time = time.time()self.logger = logging.getLogger("ProductMonitor")def update_metrics(self, success, response_time):"""更新监控指标"""if success:self.metrics["success_count"] += 1else:self.metrics["failure_count"] += 1# 更新平均响应时间total = self.metrics["success_count"] + self.metrics["failure_count"]self.metrics["avg_response_time"] = ((self.metrics["avg_response_time"] * (total - 1) + response_time) / total)# 每100次请求检查一次指标if total % 100 == 0:self.check_health()def check_health(self):"""检查系统健康状态"""failure_rate = self.metrics["failure_count"] / (self.metrics["success_count"] + self.metrics["failure_count"] + 1e-9)# 失败率过高告警if failure_rate > 0.3:self.logger.warning(f"高失败率告警: {failure_rate:.2f}")# 响应时间过长告警if self.metrics["avg_response_time"] > 10:self.logger.warning(f"响应时间过长: {self.metrics['avg_response_time']:.2f}s")# 重置计数器self.metrics["success_count"] = 0self.metrics["failure_count"] = 0

五、完整调用示例与注意事项

1. 完整工作流程示例

python

运行

def main():# 初始化组件proxy_pool = ["http://proxy1:port", "http://proxy2:port"]  # 代理池scheduler = RequestScheduler(proxy_pool=proxy_pool, max_qps=2)renderer = DynamicRenderer()parser = ProductParser()# 初始化存储redis_config = {"host": "localhost", "port": 6379}mysql_config = {"host": "localhost","user": "root","password": "password","db": "ecommerce_data"}storage = DataStorage(redis_config, mysql_config)# 启动调度器scheduler.start(worker_count=3)# 需要查询的商品ID列表item_ids = ["123456789", "987654321", "1122334455"]# 添加任务for item_id in item_ids:# 先检查缓存cached_data = storage.get_from_cache(item_id)if cached_data:print(f"从缓存获取商品 {item_id} 数据")continue# 缓存未命中，添加采集任务def process_result(item_id, html):if html:# 解析数据product_data = parser.parse(html)if product_data:# 保存到缓存和数据库storage.save_to_cache(item_id, product_data)storage.save_to_db(item_id, product_data)print(f"成功解析并保存商品 {item_id} 数据")scheduler.add_task(item_id, callback=process_result)# 等待所有任务完成scheduler.wait_complete()print("所有任务处理完成")if __name__ == "__main__":main()
