一、拉取Ubuntu 18.04 docker镜像

docker pull docker.xuanyuan.me/ubuntu:18.04

二、查看已有镜像

docker images

三、基于镜像创建容器

1. 创建容器

sudo docker run -it -p 50004:22 -v /home/lenovo/docker_share/020/:/mnt/share docker.xuanyuan.me/ubuntu:18.04

2. 退出容器

exit

3. 查看容器

docker ps -a

4. 启动容器

docker start a79692a08ab4

5. 进入容器

docker exec -it a79692a08ab4 /bin/bash

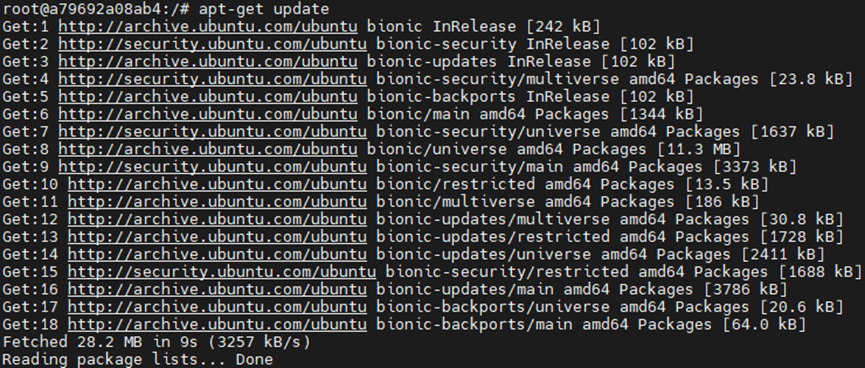

6. 更新容器内部软件源

apt-get update

四、安装CANN包

1. 安装基础依赖环境

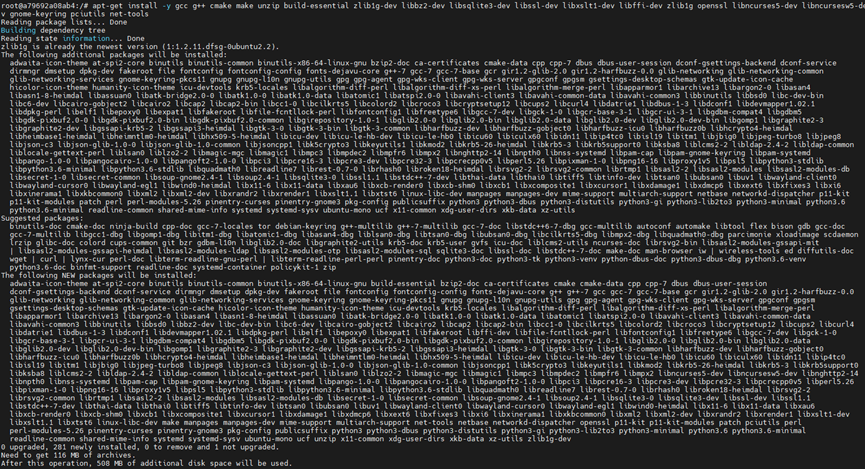

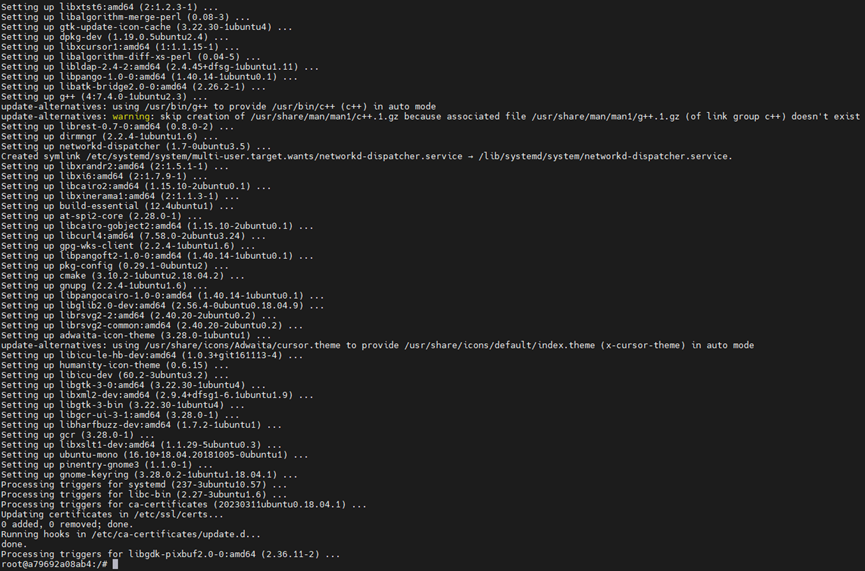

apt-get install -y gcc g++ cmake make unzip build-essential zlib1g-dev libbz2-dev libsqlite3-dev libssl-dev libxslt1-dev libffi-dev zlib1g openssl libncurses5-dev libncursesw5-dev gnome-keyring pciutils net-tools

2. 安装并配置python 3.7.5

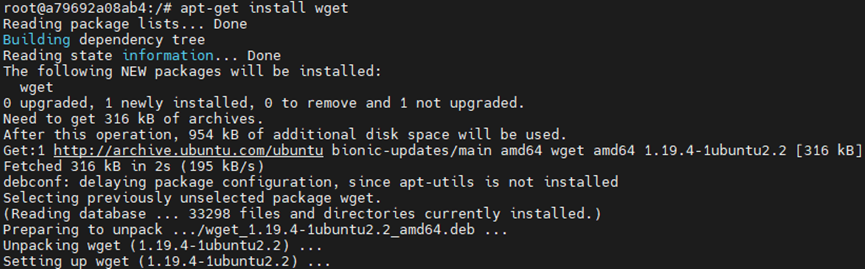

apt-get install wget

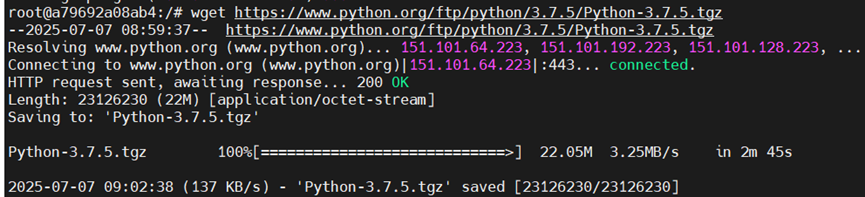

wget https://www.python.org/ftp/python/3.7.5/Python-3.7.5.tgz

tar xf Python-3.7.5.tgz

cd Python-3.7.5

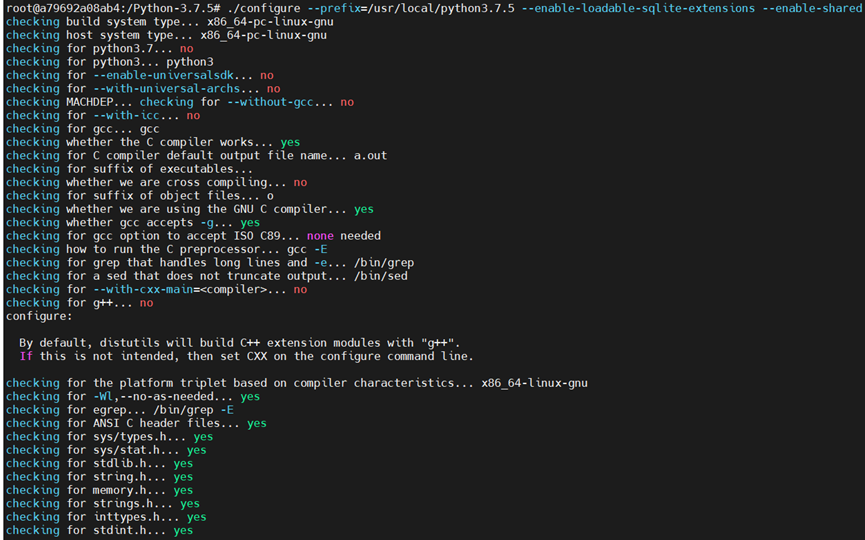

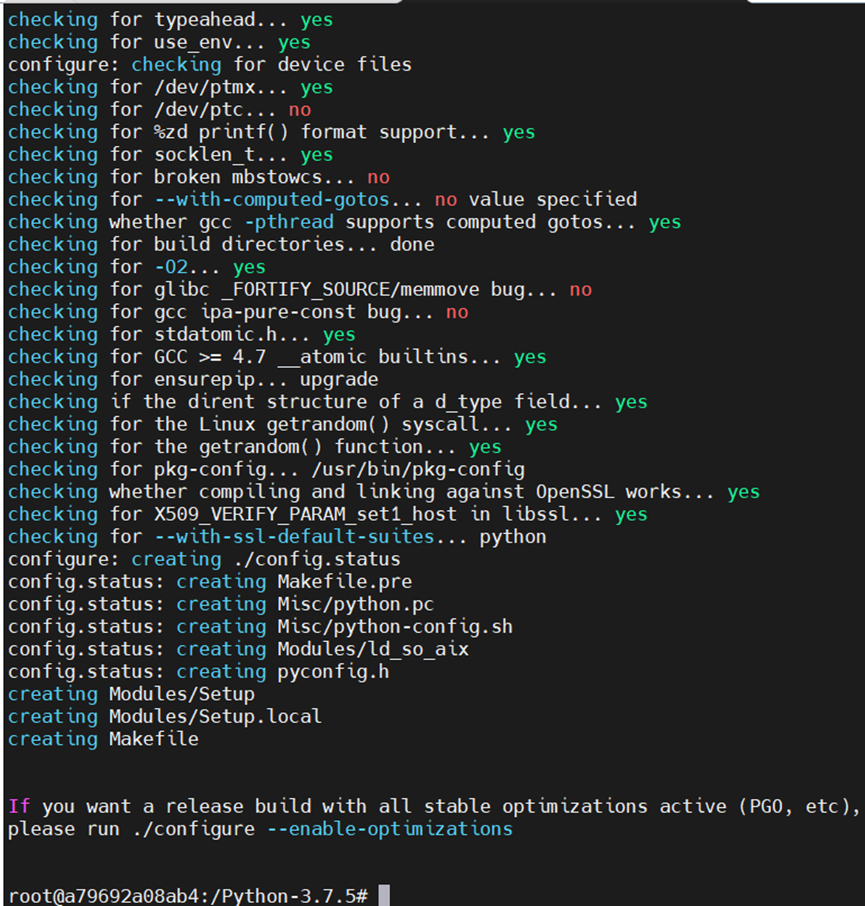

./configure --prefix=/usr/local/python3.7.5 --enable-loadable-sqlite-extensions --enable-shared

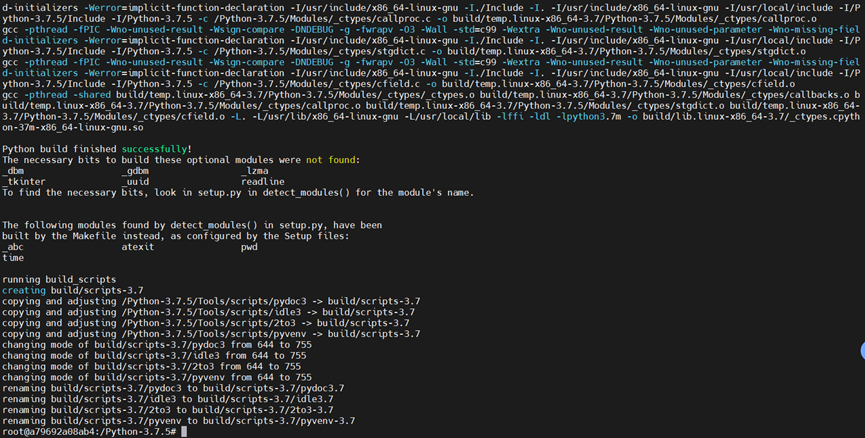

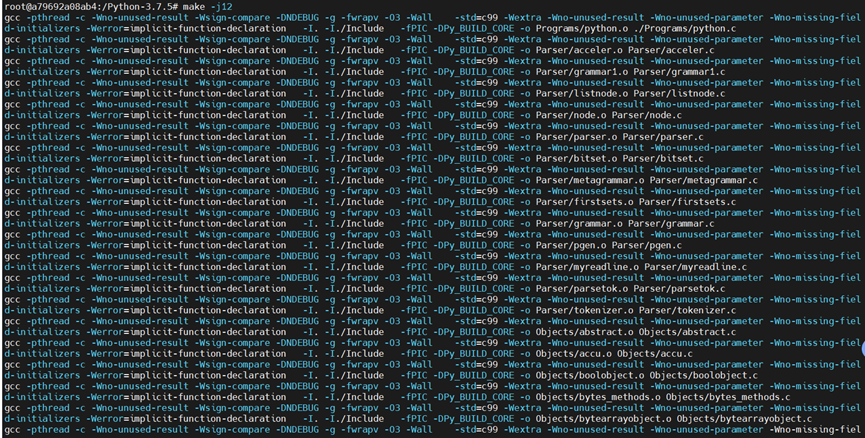

make -j12

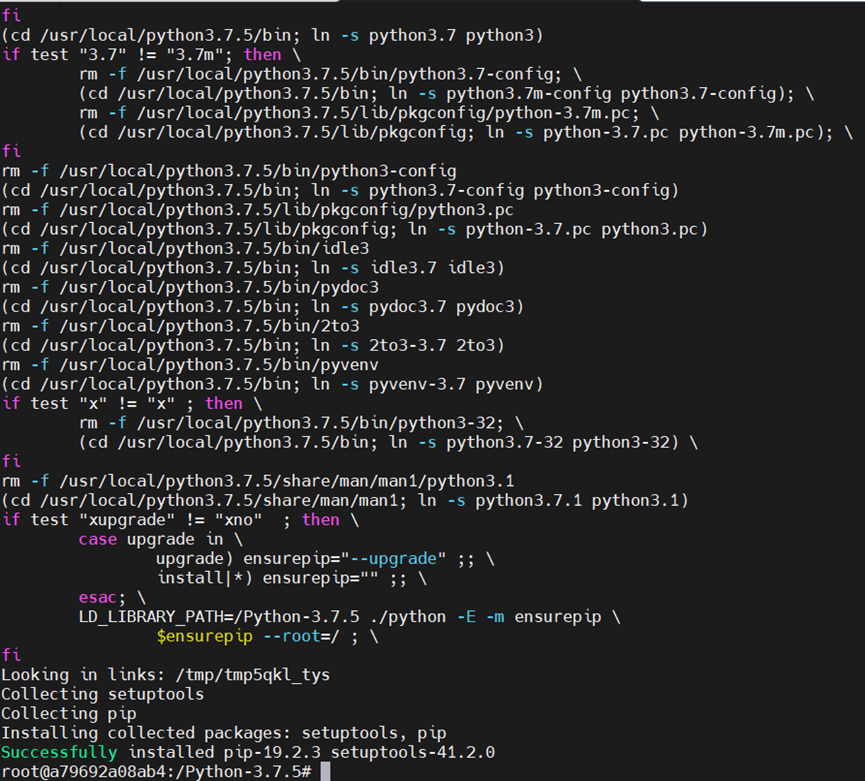

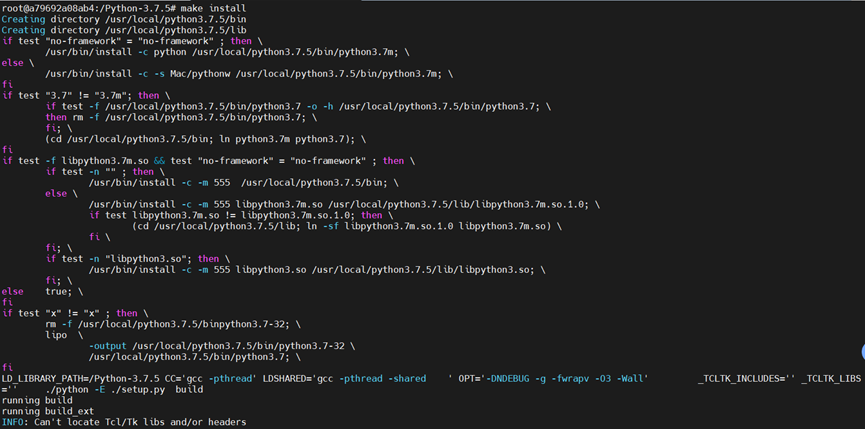

make install

ln -s /usr/local/python3.7.5/bin/python3 /usr/local/python3.7.5/bin/python3.7.5](https://i-blog.csdnimg.cn/direct/97d5cfd9ec3d441993581561b5c0c350.png)

ln -s /usr/local/python3.7.5/bin/pip3 /usr/local/python3.7.5/bin/pip3.7.5

ln -s /usr/local/python3.7.5/bin/python3 /usr/bin/python

ln -s /usr/local/python3.7.5/bin/pip3 /usr/bin/pip

配置环境变量

安装vim

apt-get install vim

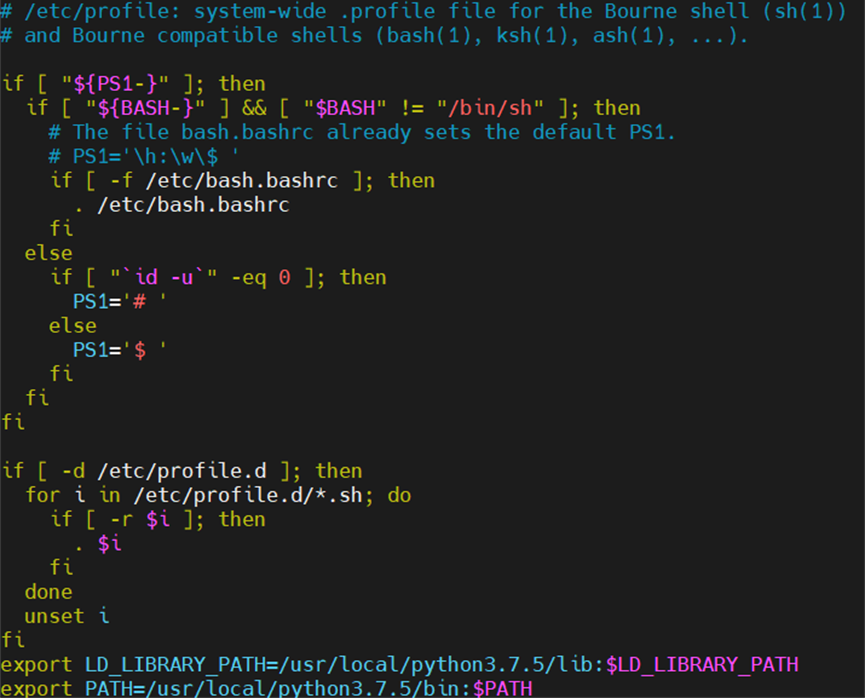

vim /etc/profile

添加

export LD_LIBRARY_PATH=/usr/local/python3.7.5/lib:$LD_LIBRARY_PATH
export PATH=/usr/local/python3.7.5/bin:$PATH

使环境变量生效

source /etc/profile

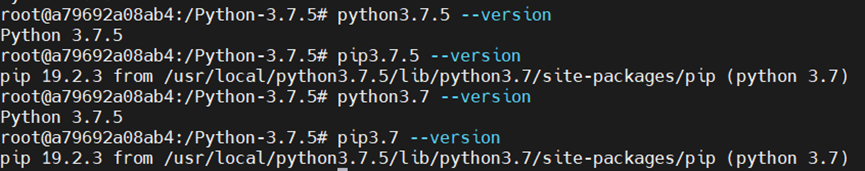

检查python版本

python3.7.5 --version
pip3.7.5 --version
python3.7 --version
pip3.7 --version

修改pip源

mkdir ~/.pip

touch ~/.pip/pip.conf

vim ~/.pip/pip.conf

添加

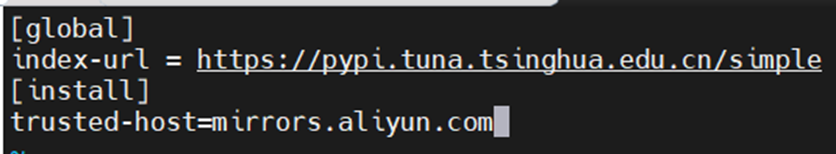

[global]
index-url = https://pypi.tuna.tsinghua.edu.cn/simple
[install]
trusted-host=mirrors.aliyun.com

升级pip

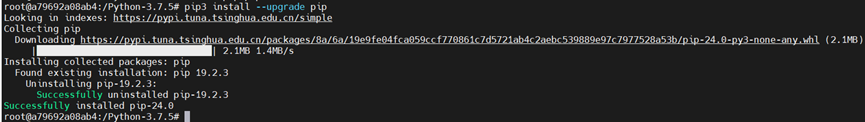

pip3 install --upgrade pip

3. 安装CANN包相关依赖

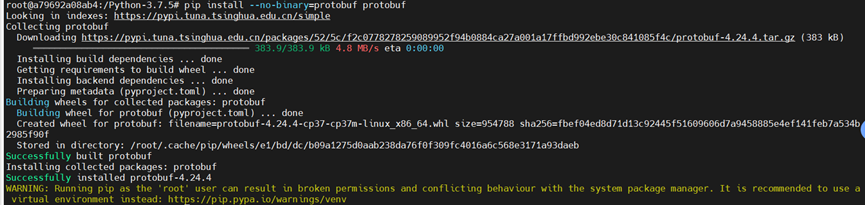

pip install --no-binary=protobuf protobuf

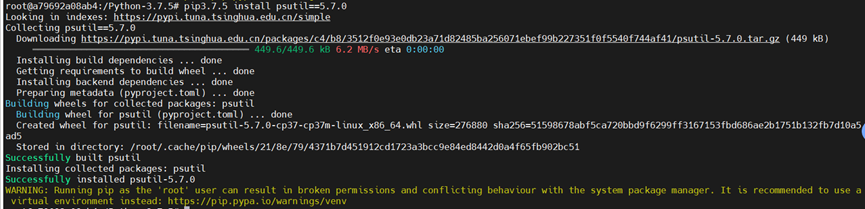

pip3.7.5 install psutil==5.7.0

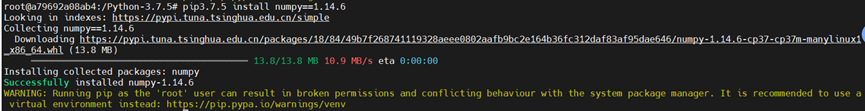

pip3.7.5 install numpy==1.14.6

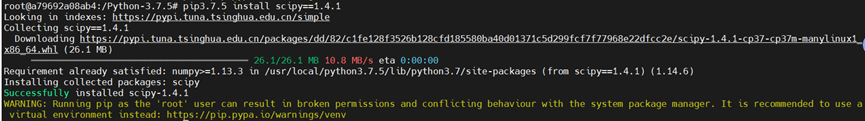

pip3.7.5 install scipy==1.4.1

pip3.7.5 install decorator==4.4.0

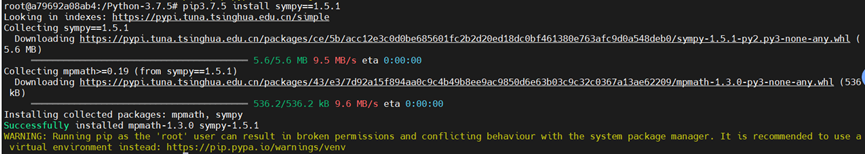

pip3.7.5 install sympy==1.5.1

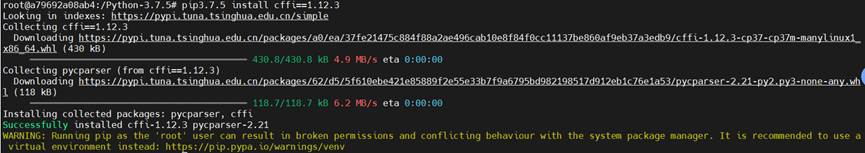

pip3.7.5 install cffi==1.12.3

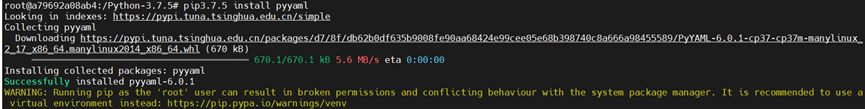

pip3.7.5 install pyyaml

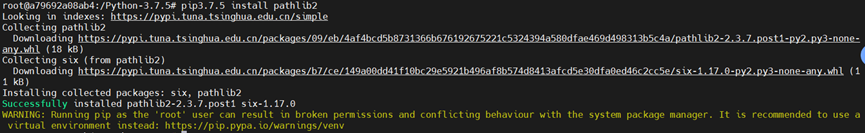

pip3.7.5 install pathlib2

4. 安装CANN软件包

创建一个临时文件夹

cd ..
mkdir tools
cd tools

容器外linux宿主机执行，拷贝你的CANN包到容器内

cd /home/xxx/xxx/SVP_PC/SVP_NNN_PC_V3.0.2.9/MindStudio/
docker cp Ascend-cann-toolkit_6.10.t03spc011b090_linux.x86_64.run a79692a08ab4:/tools

再次进入容器内tools文件夹

docker exec -it a79692a08ab4 /bin/bash
cd /xxx/tools

赋予可执行权限

chmod +x Ascend-cann-toolkit_6.10.t03spc011b090_linux.x86_64.run

检查CANN包

./Ascend-cann-toolkit_6.10.t03spc011b090_linux.x86_64.run --check

安装

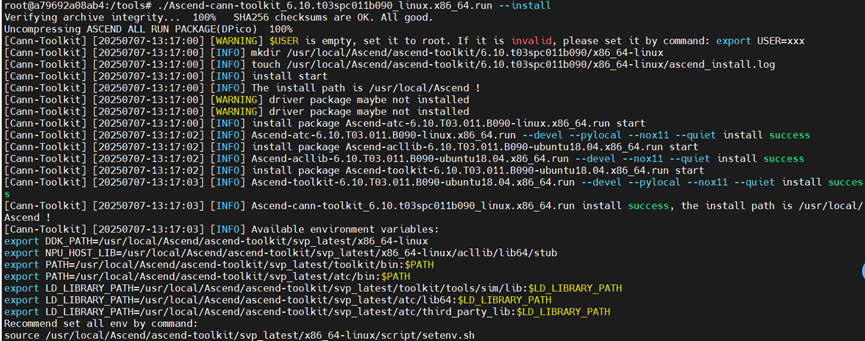

./Ascend-cann-toolkit_6.10.t03spc011b090_linux.x86_64.run --install

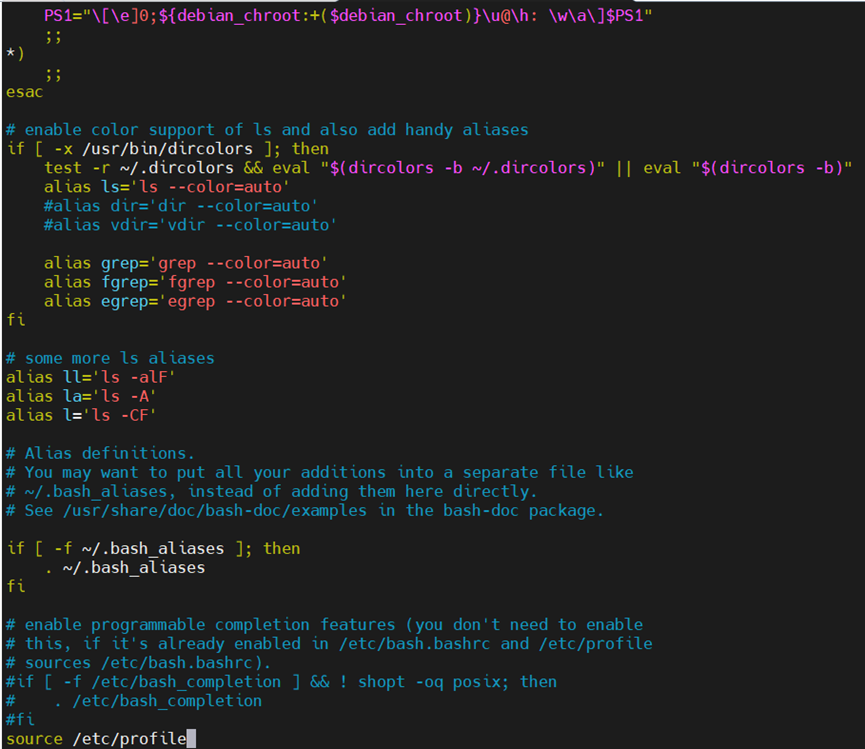

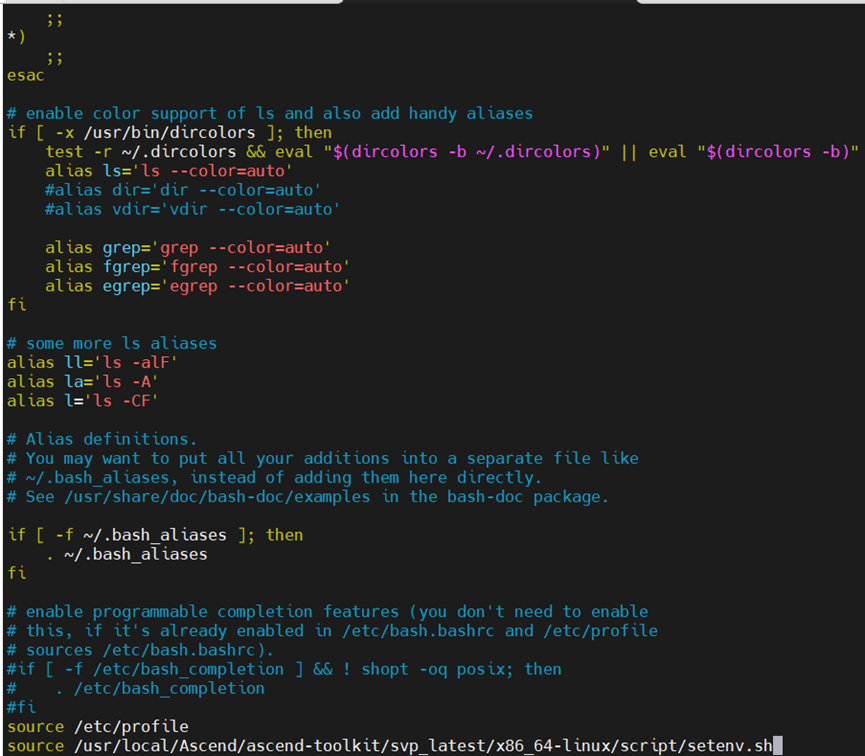

vim ~/.bashrc

添加

source /usr/local/Ascend/ascend-toolkit/svp_latest/x86-linux/script/setenv.sh

五、配置交叉编译环境

与其说配置，不如说运行一个现成的脚本
容器外执行

cd /home/xxx/xxx/SMP_Linux_GCC_glibc/

拷贝交叉编译器压缩包到容器内临时文件夹

docker cp gcc-20240819-aarch64-v01c01-linux-gnu.tgz a79692a08ab4:/tools

容器内执行

tar xf gcc-20240819-aarch64-v01c01-linux-gnu.tgz

cd gcc-20240819-aarch64-v01c01-linux-gnu
./install_gcc_toolchain.sh

source /etc/profile

musl交叉编译器同样安装方式

略

六、安装pytorch模型压缩量化工具

1. 安装基础依赖

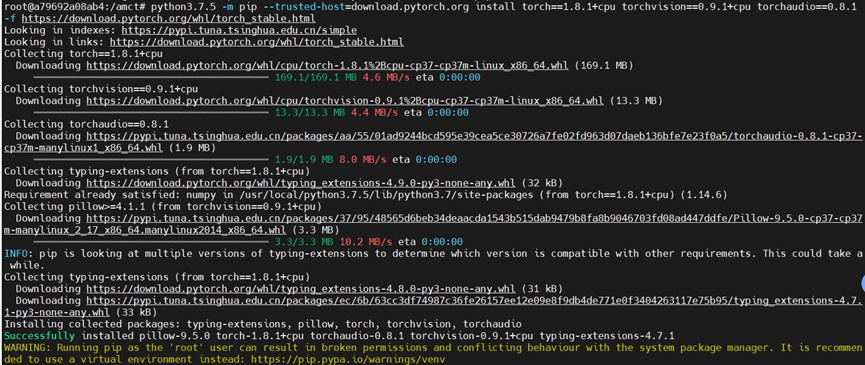

python3.7.5 -m pip --trusted-host=download.pytorch.org install torch==1.8.1+cpu torchvision==0.9.1+cpu torchaudio==0.8.1 -f https://download.pytorch.org/whl/torch_stable.html

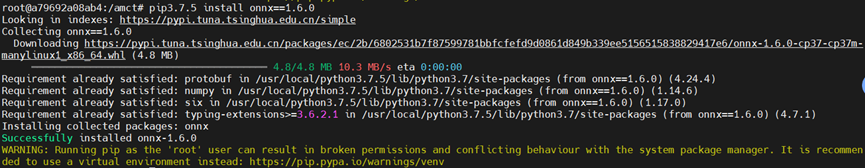

pip3.7.5 install onnx==1.6.0

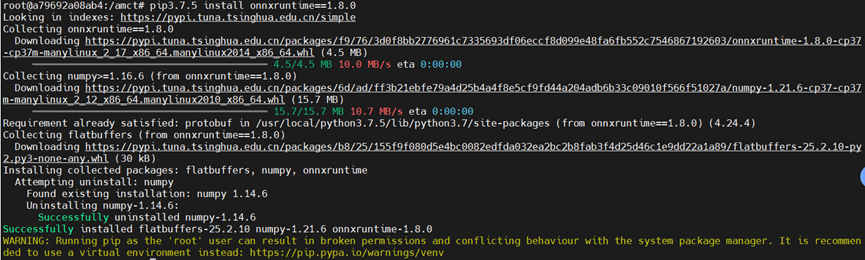

pip3.7.5 install onnxruntime==1.8.0

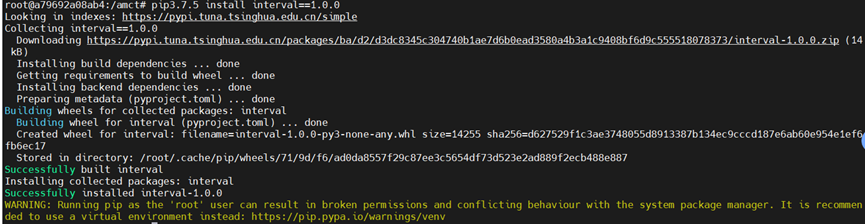

pip3.7.5 install interval==1.0.0

创建一个临时文件夹

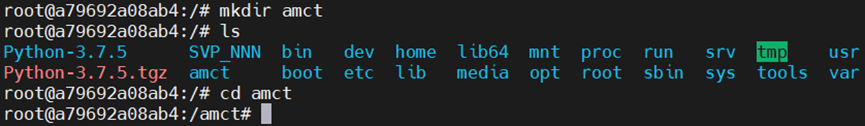

mkdir amct
cd amct

容器外执行

cd /home/xxx/xxx/SVP_PC/SVP_NNN_PC_V3.0.2.9/amct/amct_pytorch/
docker cp hotwheels_amct_pytorch-1.2.22+cu102-py3-none-linux_x86_64.tar.gz a79692a08ab4:/amct

2. 安装

容器内执行

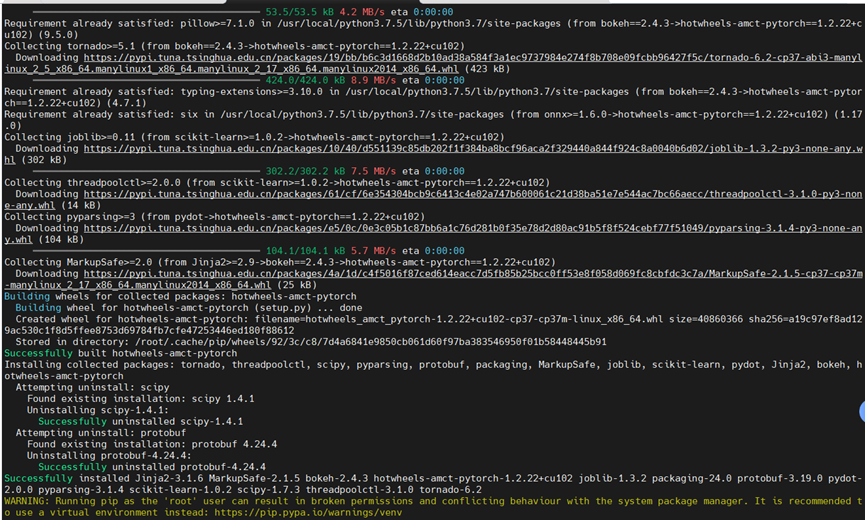

pip install hotwheels_amct_pytorch-1.2.22+cu102-py3-none-linux_x86_64.tar.gz

七、SSH配置

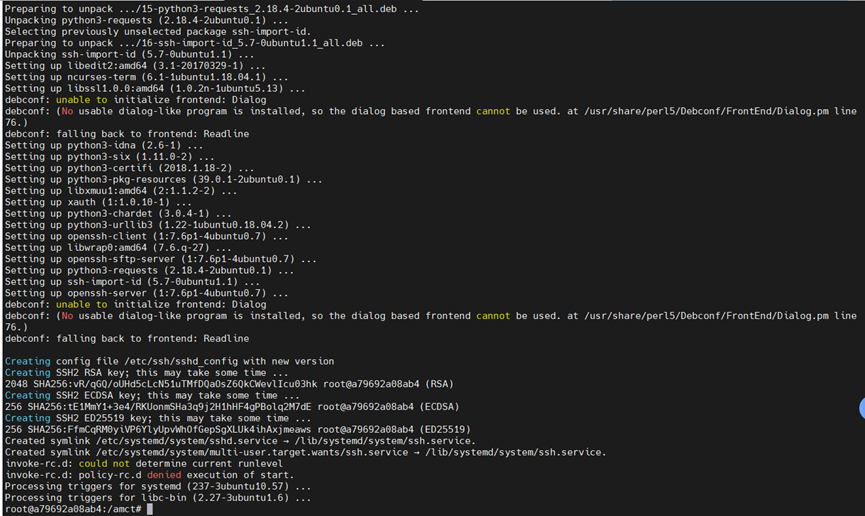

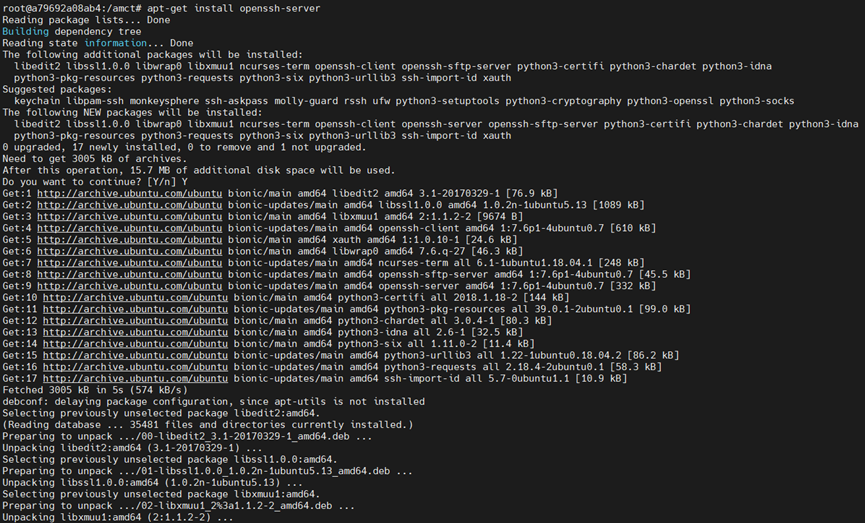

apt-get install openssh-server

echo "Port 22">>/etc/ssh/sshd_config

echo "PermitRootLogin yes">>/etc/ssh/sshd_config

echo "PermitRootLogin yes">>/etc/ssh/sshd_config

service ssh start

service ssh status

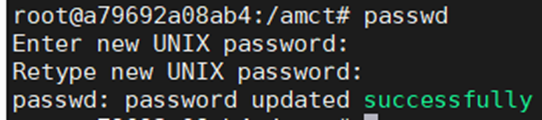

passwd

systemctl enable ssh

后续可SSH连接容器

ssh 192.xxx.xxx:50004

至此，开发环境搭建完成，可正常进行模型转换、交叉编译等工作
