介绍

本文将使用gateway api inference extension作为envoy的ext_proc服务端

启动Ext_Proc

基于Gateway API Inference Extension

https://github.com/kubernetes-sigs/gateway-api-inference-extension.git

先clone代码到本地

git clone https://github.com/kubernetes-sigs/gateway-api-inference-extension.git

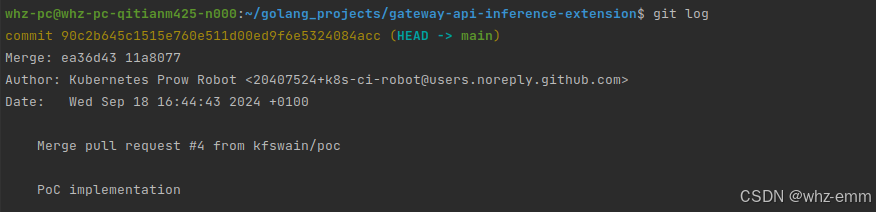

回退到一个较早commit，该commit是一个最基础的实现

git reset --hard 90c2b645c1515e760e511d00ed9f6e5324084acc

切换到examples/poc/ext-proc目录

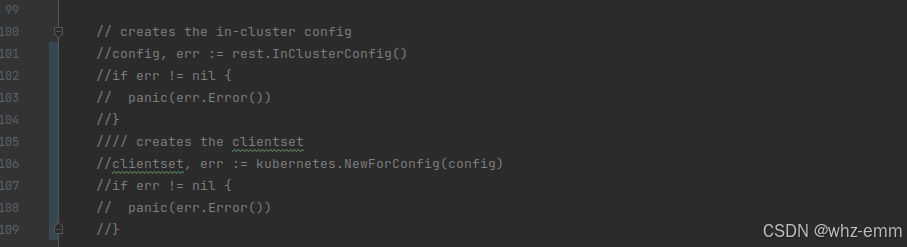

将main.go中以下k8s相关内容注释掉

直接指定Pod IP和Pod启动服务，Pod名随意，以下只是使用vllm容器启动的deepseek服务

go run main.go --podIPs 128.128.0.14:8000 --pods pod1

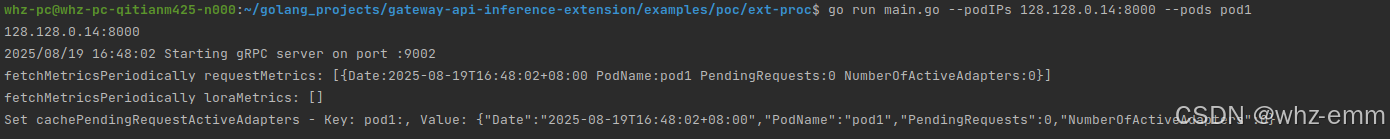

会看到定时从指定的IP中获取指标

配置Envoy

增加ext_proc配置

1. 增加一个http-filter：类型为ext_proc，放在router之前

2. 增加一个cluster：指向上述启动的服务

admin:address:socket_address:protocol: TCPaddress: 0.0.0.0port_value: 9901
static_resources:listeners:- name: listener_0address:socket_address:address: 0.0.0.0port_value: 10000filter_chains:- filters:- name: envoy.filters.network.http_connection_managertyped_config:"@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManagerstat_prefix: ingress_httpaccess_log:- name: envoy.access_loggers.stdouttyped_config:"@type": type.googleapis.com/envoy.extensions.access_loggers.stream.v3.StdoutAccessLogroute_config:name: local_routevirtual_hosts:- name: local_servicedomains: ["*"]routes:- match:prefix: "/"route:cluster: original_destination_clusterhttp_filters:- name: envoy.filters.http.ext_proctyped_config:"@type": type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessorgrpc_service:envoy_grpc:cluster_name: ext_procfailure_mode_allow: trueprocessing_mode:request_header_mode: SENDresponse_header_mode: SENDrequest_body_mode: BUFFERED_PARTIALresponse_body_mode: BUFFERED_PARTIALrequest_trailer_mode: SENDresponse_trailer_mode: SENDmessage_timeout: 1000s- name: envoy.filters.http.routertyped_config:"@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Routerclusters:- name: ext_proctype: STATICconnect_timeout: 86400shttp2_protocol_options: {}lb_policy: ROUND_ROBINload_assignment:cluster_name: ext_procendpoints:- lb_endpoints:- endpoint:address:socket_address:address: 10.42.16.26port_value: 9002load_balancing_weight: 1- name: original_destination_clustertype: ORIGINAL_DSTconnect_timeout: 1000slb_policy: CLUSTER_PROVIDEDcircuit_breakers:thresholds:- max_connections: 40000max_pending_requests: 40000max_requests: 40000original_dst_lb_config:use_http_header: true#http_header_name: x-gateway-destination-endpointhttp_header_name: target-pod

重启envoy服务

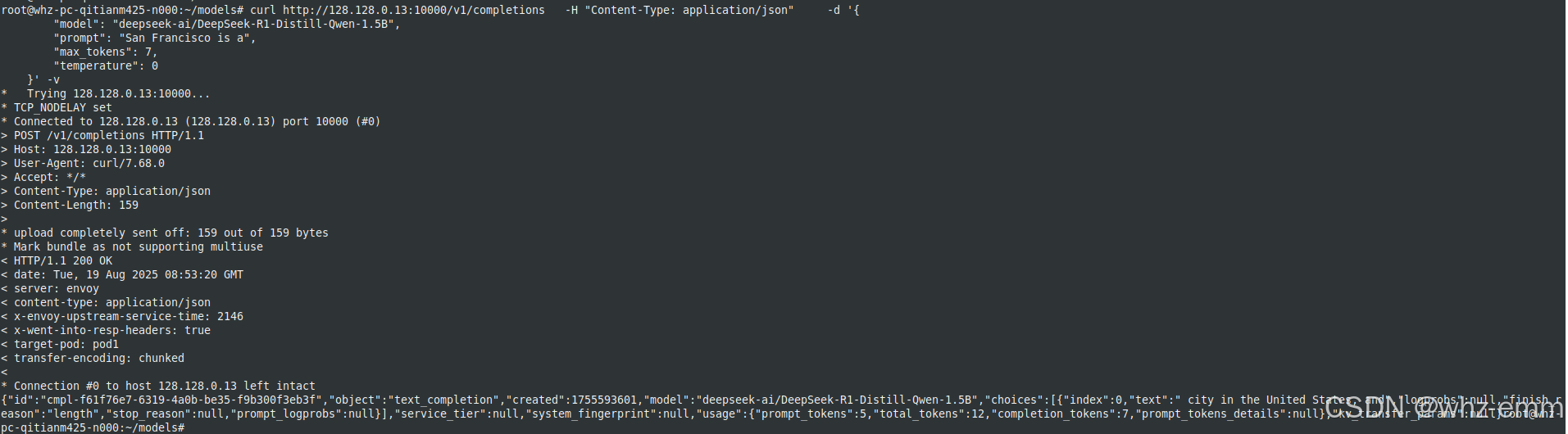

测试

不用在请求头里自己加header，envoy会自动加上

curl http://128.128.0.13:10000/v1/completions   -H "Content-Type: application/json"     -d '{"model": "deepseek-ai/DeepSeek-R1-Distill-Qwen-1.5B","prompt": "San Francisco is a","max_tokens": 7,"temperature": 0}' -v
