1 前言

在图像处理领域，图像锐化是提升图像细节清晰度的核心技术，广泛应用于摄影后期、印刷排版、计算机视觉等场景。对于前端开发者而言，如何通过纯前端技术实现 “上传 - 调整 - 锐化 - 下载” 的完整图像处理流程，是提升技术落地能力的重要实践。​

本文实现的智能图像锐化系统，基于 HTML、CSS 和 JavaScript 构建，具备三大核心功能：​

1. 灵活的图像上传：支持任意格式图像上传，实时展示原始图像；​
2. 可配置的锐化参数：提供锐化强度调节（0-100）和三种主流锐化算子（拉普拉斯、Sobel、Prewitt）选择，满足不同场景需求；​
3. 即时预览与下载：点击 “应用锐化” 可实时生成锐化后图像，对比展示原始与处理结果，支持高清 PNG 格式下载。​

该系统无需后端依赖，所有处理逻辑在浏览器端完成，既能帮助前端开发者理解图像处理的前端实现思路，也能为实际项目提供可复用的技术模板。​

2 技术实现

系统采用 “HTML 结构搭建 + CSS 样式美化 + JavaScript 交互逻辑” 的前端经典架构，各层职责清晰，协同实现完整功能。​

2.1 HTML：构建系统骨架​

HTML 负责定义系统的页面结构，按 “容器 - 头部 - 主体 - 功能按钮” 的层级组织，核心结构如下：

<!-- 根容器：统一包裹所有元素 -->
<div class="container"><!-- 头部：标题与版权信息 --><div class="header"><h1>(Copyright © 2025 CSDN@HNUSTer_CUMTBer)</h1><h1>智能图像锐化系统</h1></div><!-- 主体内容：左侧控制区+右侧预览区 --><div class="main-content"><!-- 左侧控制区：上传+参数调节 --><div class="sidebar"><div class="upload-area" onclick="document.getElementById('fileInput').click()"><p>点击上传图像</p><input type="file" id="fileInput" accept="image/*" style="display: none;" onchange="loadImage(event)"></div><div class="controls"><!-- 锐化强度滑块 --><div class="control-item"><label>锐化强度: <span id="sharpnessValue">50</span></label><input type="range" id="sharpness" min="0" max="100" value="50" oninput="updateSharpness()"></div><!-- 锐化算子选择下拉框 --><div class="control-item"><label>锐化算子</label><select id="sharpnessOperator"><option value="laplacian">拉普拉斯算子</option><option value="sobel">Sobel算子</option><option value="prewitt">Prewitt算子</option></select></div></div></div><!-- 右侧预览区：原始图像+锐化后图像对比 --><div class="preview-area"><div class="preview"><div class="image-box" data-label="原始图像"><img id="originalImage"></div><div class="image-box" data-label="锐化后图像"><img id="sharpenedImage"></div></div></div></div><!-- 功能按钮区：应用锐化+下载 --><div class="action-buttons"><button onclick="sharpenImage()">应用锐化</button><button onclick="downloadImage()">下载图像</button></div>
</div>

关键设计：通过data-label属性为图像预览框添加动态标签，用隐藏的file输入框实现自定义上传按钮，确保功能与交互的统一。​

2.2 CSS：打造视觉与交互体验​

CSS 采用 “深色科技风” 设计，结合渐变、动画和 hover 效果提升视觉吸引力，同时保证响应式布局适配不同屏幕，核心样式亮点如下：​

1. 全局样式：用线性渐变背景（linear-gradient(135deg, #0a0a0a, #1f1f1f)）营造科技感，通过flex布局让容器垂直水平居中；​
2. 动画效果：容器的glow动画实现边框呼吸灯效果，上传区域的pulse动画增强交互引导，按钮的after伪元素实现点击扩散效果；​
3. 组件样式：​

• 上传区域：dashed边框 + hover 背景变色，明确交互区域；​
• 图像预览框：object-fit: contain保证图像比例，hover 缩放效果（transform: scale(1.03)）提升交互感；​
• 控件样式：滑块用渐变背景（linear-gradient(90deg, #00ccff, #0088cc)）美化，下拉框添加边框高亮效果。​

2.3 JavaScript：实现核心锐化逻辑​

JavaScript 是系统的 “大脑”，负责图像加载、参数处理、锐化计算和下载功能，核心逻辑基于canvas实现像素级操作：​

1. 图像加载：通过FileReader读取上传文件，将图像数据存储到originalImageData变量；​
2. 参数更新：实时同步锐化强度滑块值到页面显示；​
3. 锐化计算：根据选择的算子生成权重矩阵，通过双重循环遍历图像像素，应用卷积计算实现锐化；​
4. 图像下载：创建临时a标签，利用toDataURL生成图像链接，触发下载操作。​

3 代码解析

3.1 数据存储与初始化

let originalImageData = null; // 存储原始图像数据
const canvas = document.createElement('canvas'); // 临时canvas用于像素计算
const ctx = canvas.getContext('2d'); // 2D绘图上下文

通过隐藏的canvas实现 “离线” 像素处理，避免直接操作 DOM 影响性能，同时确保锐化计算的精度。​

3.2 图像加载流程

function loadImage(event) {const file = event.target.files[0];const reader = new FileReader();reader.onload = function(e) {const img = new Image();img.onload = function() {document.getElementById('originalImage').src = e.target.result;originalImageData = img; // 存储加载完成的图像数据};img.src = e.target.result; // 赋值图像URL};reader.readAsDataURL(file); // 以DataURL格式读取文件
}

关键步骤：FileReader将文件转为 DataURL，确保图像可在浏览器中显示；img.onload事件确保图像完全加载后再存储数据，避免后续计算时数据未就绪。​

3.3 锐化算法核心：卷积计算​

锐化的本质是通过卷积操作增强图像边缘像素的对比度，系统支持三种算子，核心逻辑在sharpenImage函数中：​

• 参数获取：

const sharpness = parseInt(document.getElementById('sharpness').value) / 100; // 归一化锐化强度
const operator = document.getElementById('sharpnessOperator').value; // 获取选择的算子

• 算子权重矩阵定义：

let weights;
switch (operator) {case 'laplacian':weights = [0, -sharpness, 0, -sharpness, 1 + 4 * sharpness, -sharpness, 0, -sharpness, 0];break;case 'sobel':weights = [-sharpness, 0, sharpness, -2 * sharpness, 0, 2 * sharpness, -sharpness, 0, sharpness];break;case 'prewitt':weights = [-sharpness, 0, sharpness, -sharpness, 0, sharpness, -sharpness, 0, sharpness];break;
}

1. 拉普拉斯算子：突出中心像素与周围像素的差异，适合整体锐化；​
2. Sobel 算子：横向梯度计算，增强水平边缘；​
3. Prewitt 算子：横向梯度计算，边缘检测更平缓；

• 像素卷积计算：

const sharpenedData = new Uint8ClampedArray(data.length); // 存储锐化后像素数据
for (let y = 1; y < canvas.height - 1; y++) { // 遍历像素行（避开边缘）for (let x = 1; x < canvas.width - 1; x++) { // 遍历像素列let r = 0, g = 0, b = 0;// 3x3卷积窗口遍历for (let dy = -1; dy <= 1; dy++) {for (let dx = -1; dx <= 1; dx++) {const idx = ((y + dy) * canvas.width + (x + dx)) * 4; // 相邻像素索引const weight = weights[(dy + 1) * 3 + (dx + 1)]; // 对应权重r += data[idx] * weight; // 红色通道卷积g += data[idx + 1] * weight; // 绿色通道卷积b += data[idx + 2] * weight; // 蓝色通道卷积}}// 合并原始像素与锐化结果，确保值在0-255范围内const i = (y * canvas.width + x) * 4;sharpenedData[i] = Math.min(255, Math.max(0, data[i] + r));sharpenedData[i + 1] = Math.min(255, Math.max(0, data[i + 1] + g));sharpenedData[i + 2] = Math.min(255, Math.max(0, data[i + 2] + b));sharpenedData[i + 3] = data[i + 3]; // 保持透明度不变}
}

关键设计：通过Math.min(255, Math.max(0, ...))确保像素值在有效范围，避免出现异常颜色；避开图像边缘（y从1到height-1）防止卷积窗口越界。

3.4 下载功能实现

function downloadImage() {const link = document.createElement('a');link.href = document.getElementById('sharpenedImage').src; // 锐化后图像URLlink.download = 'sharpened_image.png'; // 下载文件名link.click(); // 触发下载
}

利用浏览器原生a标签的download属性，无需后端接口即可实现本地下载，简化流程且提升效率。

4 完整代码

<!DOCTYPE html>
<html lang="zh-CN">
<head><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1.0"><title>智能图像锐化系统</title><style>body {font-family: 'Microsoft YaHei', sans-serif;background: linear-gradient(135deg, #0a0a0a, #1f1f1f);color: #ffffff;display: flex;justify-content: center;align-items: center;height: 100vh;margin: 0;overflow: hidden;}.container {background: rgba(15, 15, 15, 0.95);border-radius: 20px;padding: 30px;width: 1200px;height: 700px;box-shadow: 0 0 50px rgba(0, 204, 255, 0.4);display: flex;flex-direction: column;animation: glow 2.5s infinite alternate;}@keyframes glow {0% { box-shadow: 0 0 20px rgba(0, 204, 255, 0.3); }100% { box-shadow: 0 0 50px rgba(0, 204, 255, 0.6); }}.header {text-align: center;padding-bottom: 20px;border-bottom: 1px solid rgba(0, 204, 255, 0.3);}h1 {margin: 0;font-size: 32px;color: #00ccff;text-shadow: 0 0 15px rgba(0, 204, 255, 0.8);letter-spacing: 4px;}.main-content {display: flex;flex: 1;gap: 30px;padding: 20px 0;}.sidebar {width: 300px;display: flex;flex-direction: column;gap: 20px;}.upload-area {border: 2px dashed #00ccff;border-radius: 15px;padding: 30px;text-align: center;cursor: pointer;background: rgba(0, 204, 255, 0.05);transition: all 0.3s ease;position: relative;}.upload-area:hover {background: rgba(0, 204, 255, 0.2);box-shadow: 0 0 25px rgba(0, 204, 255, 0.6);}.upload-area::after {content: '';position: absolute;top: -50%;left: -50%;width: 200%;height: 200%;background: radial-gradient(circle, rgba(0, 204, 255, 0.1), transparent);pointer-events: none;animation: pulse 5s infinite;}@keyframes pulse {0% { transform: scale(0.8); opacity: 0.5; }50% { transform: scale(1.2); opacity: 0.2; }100% { transform: scale(0.8); opacity: 0.5; }}.controls {display: flex;flex-direction: column;gap: 20px;}.control-item {display: flex;flex-direction: column;gap: 10px;}label {font-size: 16px;color: #e0e0e0;letter-spacing: 1px;}input[type="range"] {width: 100%;height: 8px;background: linear-gradient(90deg, #00ccff, #0088cc);border-radius: 5px;accent-color: #00ccff;cursor: pointer;}select {width: 100%;padding: 12px;background: #2a2a2a;color: #fff;border: 1px solid #00ccff;border-radius: 8px;font-size: 16px;cursor: pointer;transition: all 0.3s ease;}select:hover {background: #3a3a3a;box-shadow: 0 0 15px rgba(0, 204, 255, 0.5);}.preview-area {flex: 1;display: flex;flex-direction: column;gap: 20px;}.preview {display: flex;gap: 20px;flex: 1;}.image-box {flex: 1;background: #1a1a1a;border-radius: 15px;overflow: hidden;position: relative;transition: transform 0.3s ease;}.image-box:hover {transform: scale(1.03);}.image-box img {width: 100%;height: 100%;object-fit: contain;}.image-box::before {content: attr(data-label);position: absolute;top: 10px;left: 10px;background: rgba(0, 204, 255, 0.2);padding: 5px 10px;border-radius: 5px;font-size: 14px;color: #fff;}.action-buttons {display: flex;justify-content: center;gap: 20px;padding-top: 20px;border-top: 1px solid rgba(0, 204, 255, 0.3);}button {background: linear-gradient(45deg, #00ccff, #0088cc);border: none;padding: 15px 40px;border-radius: 10px;color: white;font-size: 18px;cursor: pointer;transition: all 0.3s ease;box-shadow: 0 0 20px rgba(0, 204, 255, 0.5);position: relative;overflow: hidden;}button:hover {transform: translateY(-3px);box-shadow: 0 0 30px rgba(0, 204, 255, 0.8);}button::after {content: '';position: absolute;top: 50%;left: 50%;width: 0;height: 0;background: rgba(255, 255, 255, 0.2);border-radius: 50%;transform: translate(-50%, -50%);transition: width 0.3s ease, height 0.3s ease;}button:hover::after {width: 200%;height: 200%;}</style>
</head>
<body><div class="container"><div class="header"><h1>(Copyright © 2025 CSDN@HNUSTer_CUMTBer)</h1><h1>智能图像锐化系统</h1></div><div class="main-content"><div class="sidebar"><div class="upload-area" onclick="document.getElementById('fileInput').click()"><p>点击上传图像</p><input type="file" id="fileInput" accept="image/*" style="display: none;" onchange="loadImage(event)"></div><div class="controls"><div class="control-item"><label>锐化强度: <span id="sharpnessValue">50</span></label><input type="range" id="sharpness" min="0" max="100" value="50" oninput="updateSharpness()"></div><div class="control-item"><label>锐化算子</label><select id="sharpnessOperator"><option value="laplacian">拉普拉斯算子</option><option value="sobel">Sobel算子</option><option value="prewitt">Prewitt算子</option></select></div></div></div><div class="preview-area"><div class="preview"><div class="image-box" data-label="原始图像"><img id="originalImage"></div><div class="image-box" data-label="锐化后图像"><img id="sharpenedImage"></div></div></div></div><div class="action-buttons"><button onclick="sharpenImage()">应用锐化</button><button onclick="downloadImage()">下载图像</button></div></div><script>let originalImageData = null;const canvas = document.createElement('canvas');const ctx = canvas.getContext('2d');function loadImage(event) {const file = event.target.files[0];const reader = new FileReader();reader.onload = function(e) {const img = new Image();img.onload = function() {document.getElementById('originalImage').src = e.target.result;originalImageData = img;};img.src = e.target.result;};reader.readAsDataURL(file);}function updateSharpness() {const value = document.getElementById('sharpness').value;document.getElementById('sharpnessValue').textContent = value;}function sharpenImage() {if (!originalImageData) return alert('请先上传图像');const sharpness = parseInt(document.getElementById('sharpness').value) / 100;const operator = document.getElementById('sharpnessOperator').value;canvas.width = originalImageData.width;canvas.height = originalImageData.height;ctx.drawImage(originalImageData, 0, 0);const imageData = ctx.getImageData(0, 0, canvas.width, canvas.height);const data = imageData.data;let weights;switch (operator) {case 'laplacian':weights = [0, -sharpness, 0,-sharpness, 1 + 4 * sharpness, -sharpness,0, -sharpness, 0];break;case 'sobel':weights = [-sharpness, 0, sharpness,-2 * sharpness, 0, 2 * sharpness,-sharpness, 0, sharpness];break;case 'prewitt':weights = [-sharpness, 0, sharpness,-sharpness, 0, sharpness,-sharpness, 0, sharpness];break;}const sharpenedData = new Uint8ClampedArray(data.length);for (let y = 1; y < canvas.height - 1; y++) {for (let x = 1; x < canvas.width - 1; x++) {let r = 0, g = 0, b = 0;for (let dy = -1; dy <= 1; dy++) {for (let dx = -1; dx <= 1; dx++) {const idx = ((y + dy) * canvas.width + (x + dx)) * 4;const weight = weights[(dy + 1) * 3 + (dx + 1)];r += data[idx] * weight;g += data[idx + 1] * weight;b += data[idx + 2] * weight;}}const i = (y * canvas.width + x) * 4;sharpenedData[i] = Math.min(255, Math.max(0, data[i] + r));sharpenedData[i + 1] = Math.min(255, Math.max(0, data[i + 1] + g));sharpenedData[i + 2] = Math.min(255, Math.max(0, data[i + 2] + b));sharpenedData[i + 3] = data[i + 3];}}const sharpenedImageData = new ImageData(sharpenedData, canvas.width, canvas.height);ctx.putImageData(sharpenedImageData, 0, 0);document.getElementById('sharpenedImage').src = canvas.toDataURL();}function downloadImage() {const link = document.createElement('a');link.href = document.getElementById('sharpenedImage').src;link.download = 'sharpened_image.png';link.click();}</script>
</body>
</html>

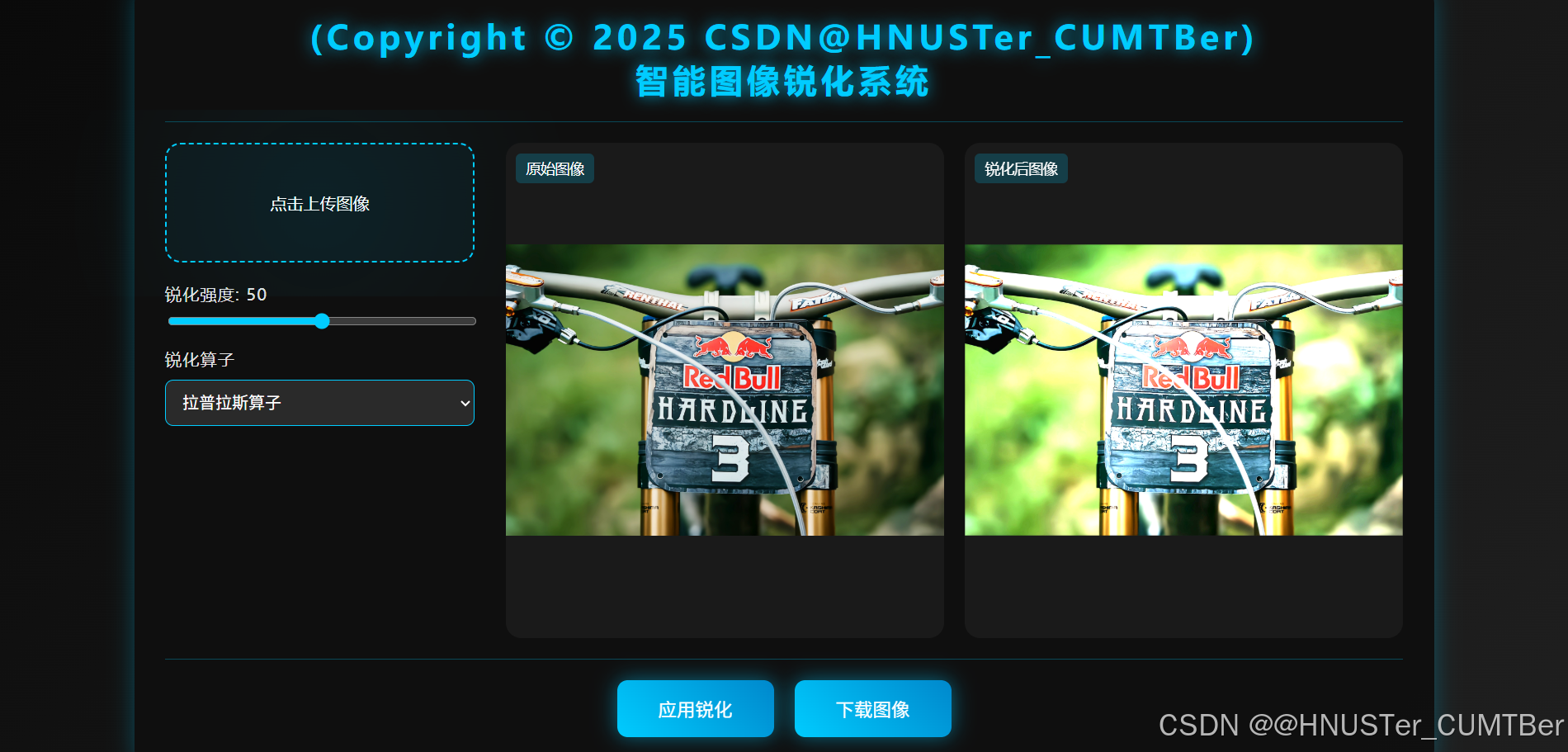

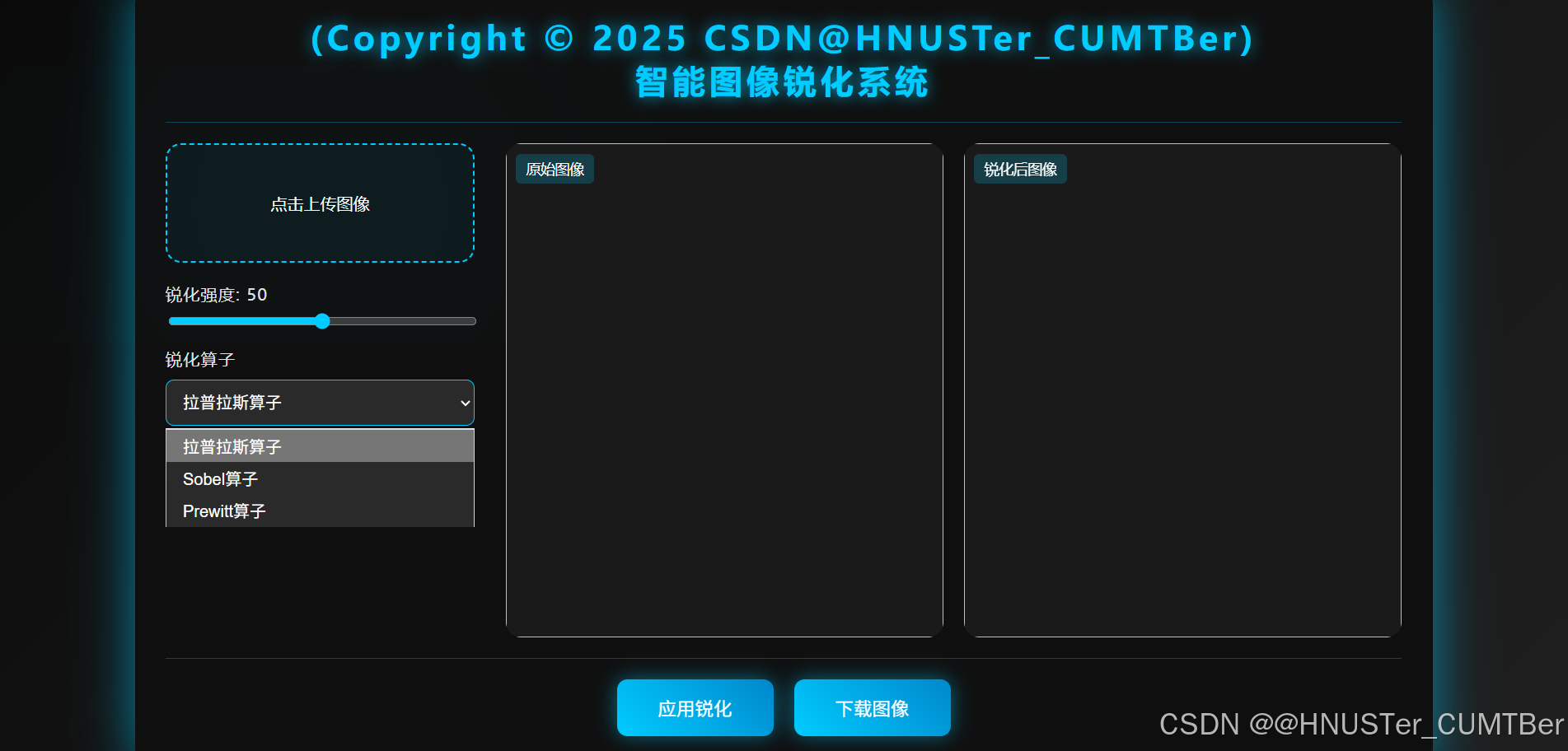

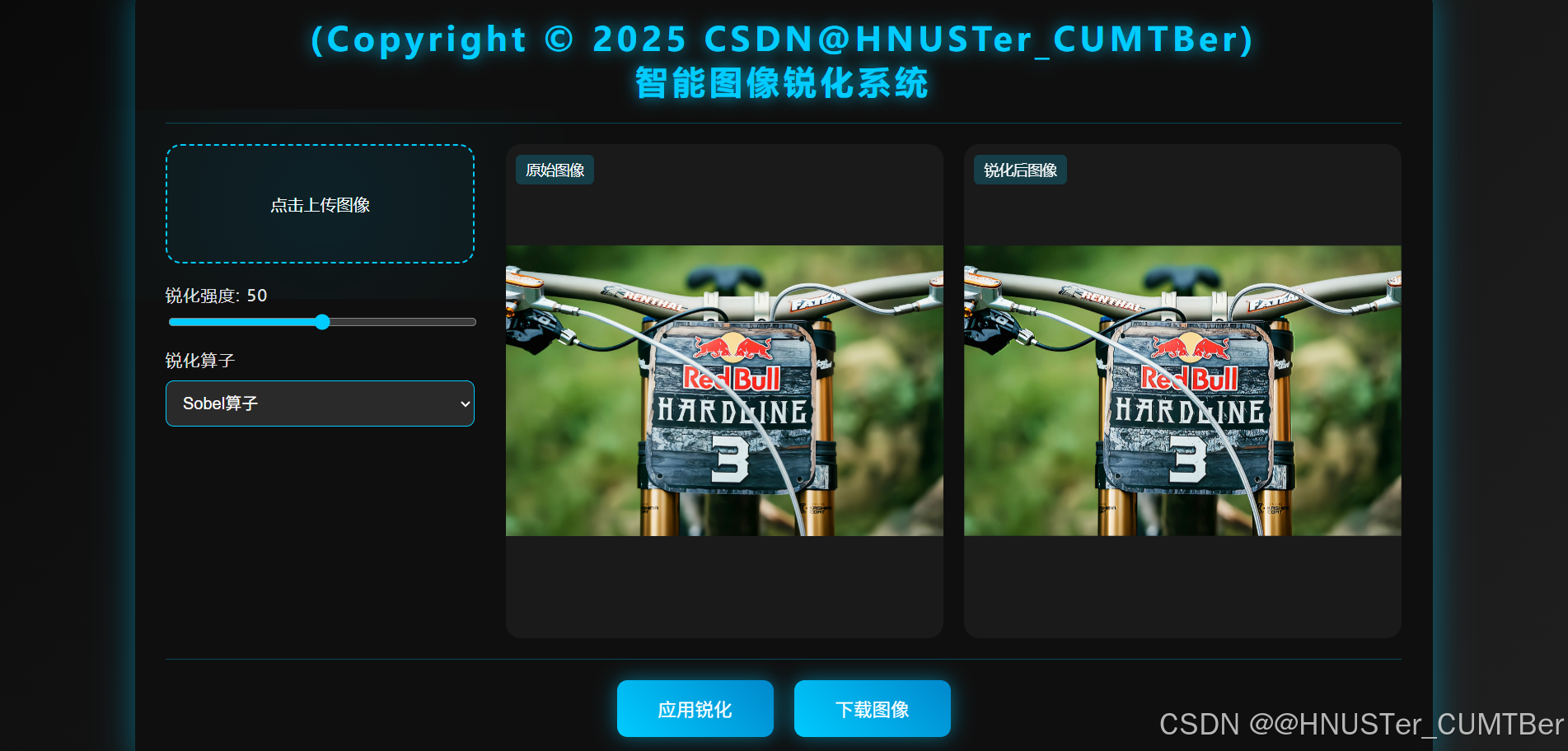

5 运行结果

6 总结

本文围绕基于 HTML、CSS 和 JavaScript 的智能图像锐化系统展开，先点明系统价值 —— 无需后端依赖，可实现 “上传 - 调整 - 锐化 - 下载” 完整流程，助力前端开发者掌握图像处理前端实现思路。技术架构上，分三层拆解：HTML 搭建 “容器 - 头部 - 主体 - 功能按钮” 结构，CSS 以深色科技风设计，结合渐变、动画提升视觉与交互体验，JavaScript 基于 canvas 实现图像加载、参数处理、卷积计算锐化及下载功能。核心功能包含灵活图像上传、可配置锐化参数（强度 0-100 + 三种算子）、即时预览与高清下载。文中还深入解析卷积计算等核心逻辑，提供完整可运行代码，兼具学习参考与实际复用价值。
